A forward-only plate compactor has to be turned around at the end of a trench. A reversible does not — and in a trench, that is the whole argument. The BravePro BRPRP220H travels forward and backward on a hydraulic control lever, so the operator works a trench, a footing or a confined pad by walking the machine up and back without ever lifting or spinning it.
It delivers roughly 6,744 pounds of centrifugal force through a 27 x 20-inch plate at 5,400 vibrations per minute — enough for sand, gravel and cohesive soils under pads, driveways and structural backfill. A cast-iron vibrator assembly carries that load, and an isolated handle keeps the vibration out of the operator's hands and shoulders across a full shift.
Practical details matter on a machine this heavy: the handles fold from 45 to 90 degrees for transport, a heavy-duty roll cage protects the engine when it is dropped into a trench, reverse travel carries its own safety protection, and the wheel kit is included rather than sold separately.
Key Features & Benefits
- Hydrostatic forward and reverse – work a trench up and back without turning the machine around
- Hydraulic direction lever – change travel direction with one hand, no repositioning
- 6,744 lbs centrifugal force – 30 kN through a 27 x 20 in. plate at 5,400 VPM
- Cast iron vibrator assembly – the part that fails first on lighter machines
- Isolated vibration handle – keeps the shift-long hand and arm loading down

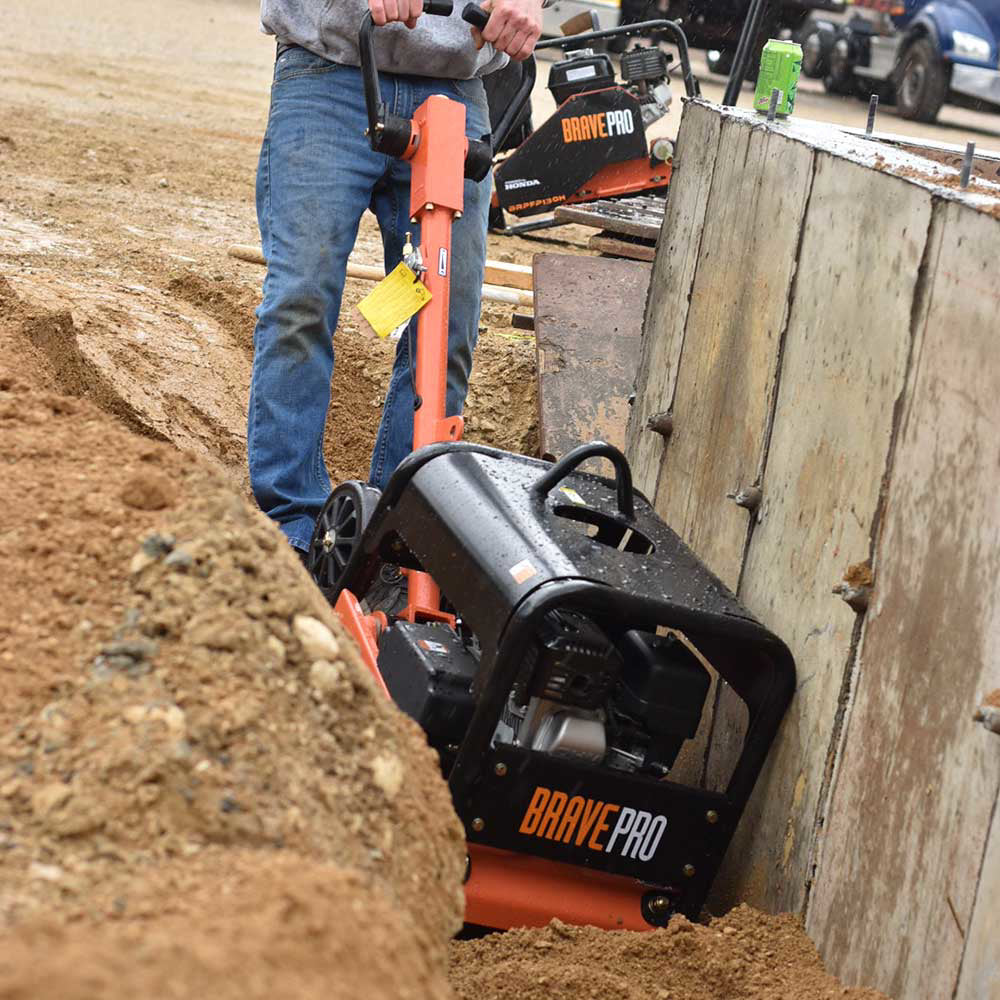

- Heavy-duty roll cage – protects the engine when the machine is lowered into a trench
- Reverse travel safety protection – guards against the operator being caught behind the machine

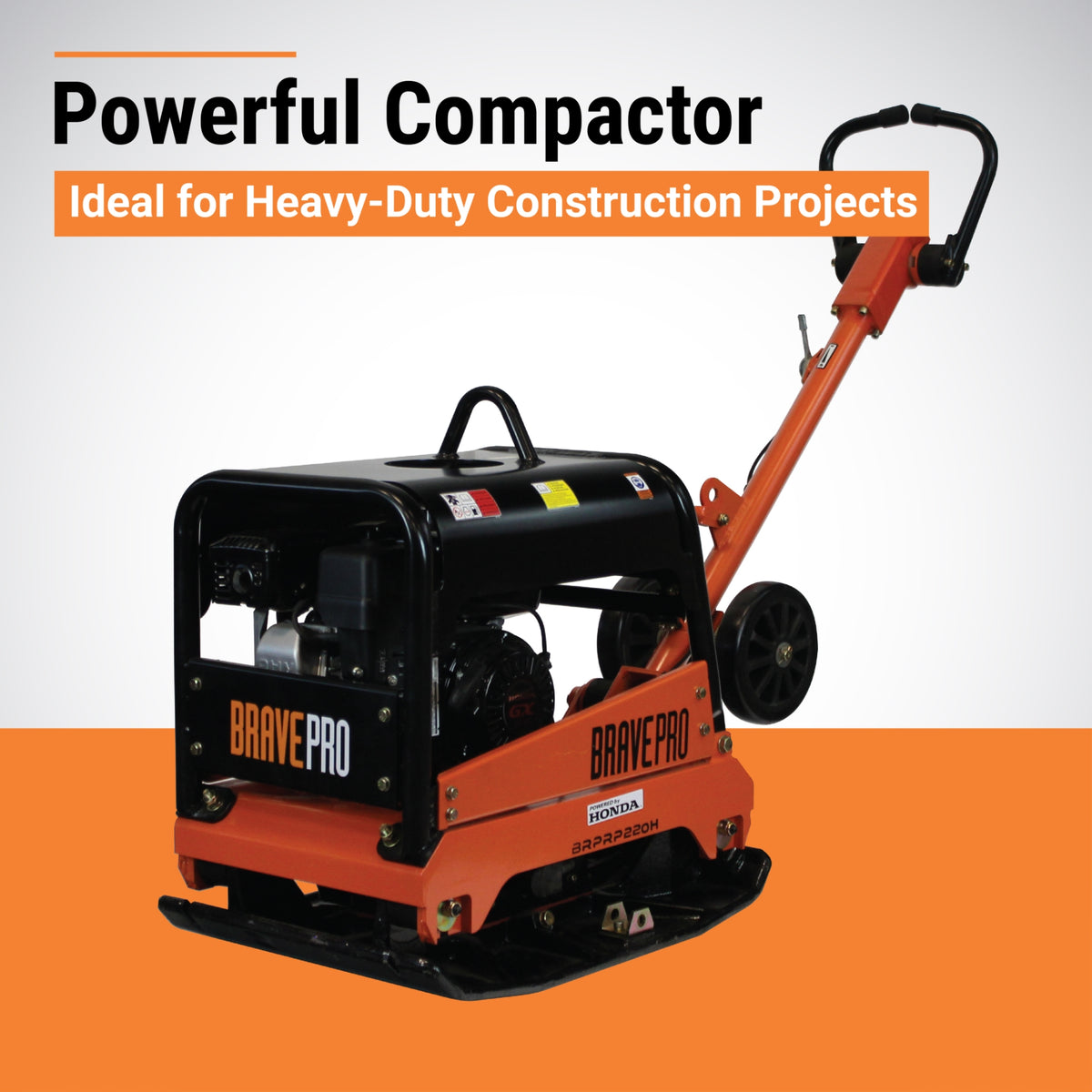

- Wheel kit included – not an extra-cost accessory
- Folding handles – 45 to 90 degree positions for transport
Specifications
| Specifications | Details |
|---|---|
| Equipment Type | Reversible Plate Compactor |
| Engine | Honda GX200, 200cc, 6.5 HP |
| Plate Size | 27 in. x 20 in. (686 x 508 mm) |
| Centrifugal Force | 30 kN (approx. 6,744 lbs) |
| Vibration Frequency | 90 Hz (5,400 VPM) |
| Travel Speed | 66 ft/min (20 m/min) |
| Travel Direction | Hydrostatic forward and reverse |
| Vibrator Assembly | Cast iron |
| Dry Weight | 375 lbs (170 kg) |
| SKU | BRPRP220H |
What's Included
- BravePro BRPRP220H reversible plate compactor
- Wheel kit
- Heavy-duty roll cage
- Operator's manual
Add To Your Machine
- Browse the full BravePro concrete and compaction range — tamping rammers, mixers, trowels and screeds
Ordering more than one machine on the same order means one freight shipment and one freight charge instead of two.
Operation Video
Brave has not published a video of the BRPRP220H. The machine shown is the Brave BRPFP130H, a smaller 16-inch forward-travel plate compactor with a Honda GX160 — same manufacturer and the same controls and handling, but it is forward-only and lighter. The machine on this page is 20 inches wide, reversible, and roughly twice the compaction force.
