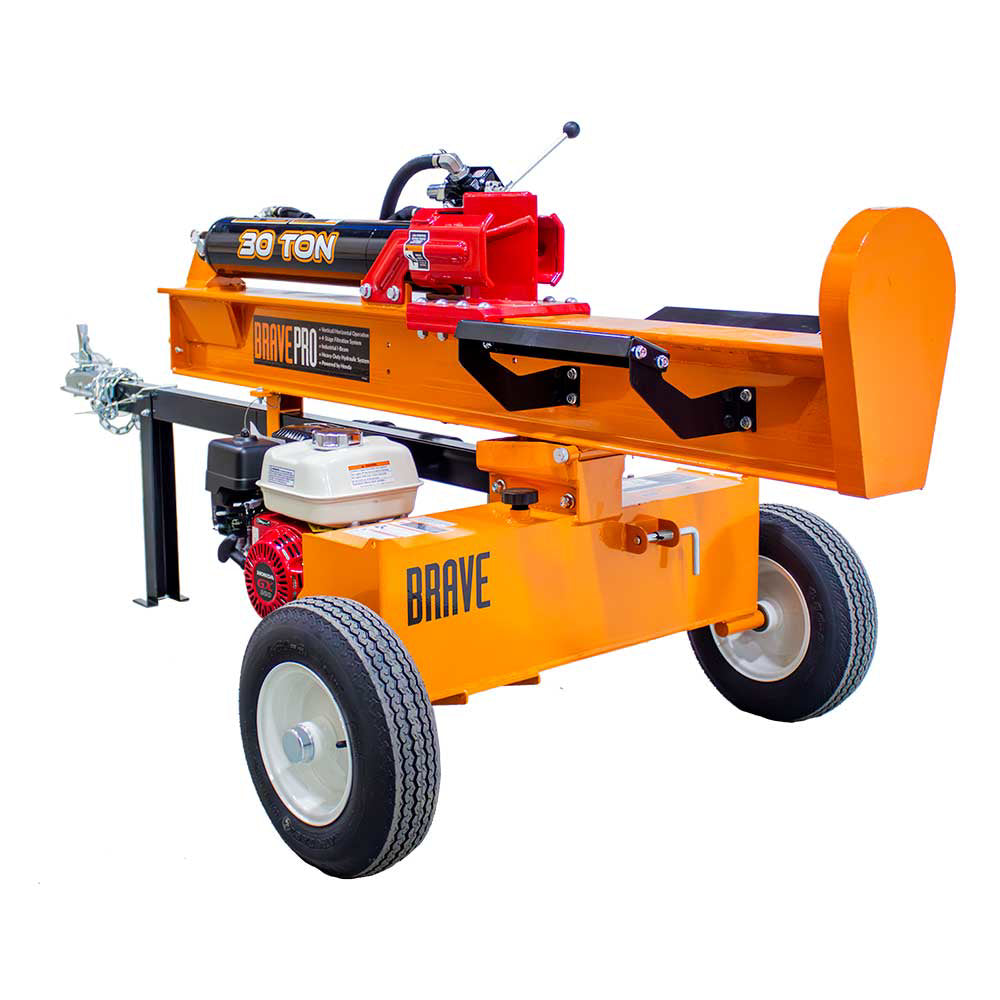

BravePro VH1730GX Log Splitter — 30-Ton, Honda GX200, Horizontal & Vertical, Tow-Ready
BravePro VH1730GX Log Splitter — 30-Ton, Honda GX200, Horizontal & Vertical, Tow-Ready is backordered and will ship as soon as it is back in stock.
Delivery Options
Choose Freight Delivery or Own Freight to continue.
Request received
We are pricing your freight now. You will have an exact delivered cost by email within one business day, and nothing is charged until you approve it.
Ships LTL freight — 650 lbs
Freight on this machine is quoted, not a flat fee — the cost depends on your delivery address and whether you have a loading dock. We confirm the exact freight cost with you in writing before you pay a cent. Curbside delivery is standard; liftgate available. See our freight & delivery guide.
SSL secured checkout — your payment details are encrypted and are never stored on our servers.
We’re Here When You Need Us
Thirty tons is the point where a log splitter stops being a homeowner tool. Knotty oak, elm, twisted crotch wood, rounds too big to lift — the pieces a 20-ton machine stalls on are the pieces this one goes through.
The machine converts between horizontal and vertical, which is the feature that saves your back. Rounds you can lift go on the beam horizontally; rounds you cannot lift get rolled to the splitter and split standing up on the ground. On a big day of firewood that is the difference between finishing and not.
The hydraulics are commercial: a 5 x 24 in. trunnion-mounted cylinder with a 2 in. rod, a 13 GPM two-stage pump, 8.5 gallons of oil and four-stage filtration. Trunnion mounting lets the cylinder float slightly under load instead of putting bending stress on the rod — that is why a well-built splitter lasts twenty years. Cycle time is about 14 seconds.
The 8 in. high-carbon steel wedge carries a heavy-duty log dislodger, so a piece that grabs the wedge gets pushed off on the return stroke instead of being pried free by hand. The 25 in. log opening takes serious rounds, and it is tow-ready with a 2 in. coupler and highway-rated tires.
Key Features & Benefits
- 30 tons of splitting force — goes through knotty oak, elm and crotch wood
- Horizontal AND vertical operation — heavy rounds never have to be lifted
- ~14 second cycle time
- 5 x 24 in. trunnion-mount cylinder, 2 in. rod — no bending stress on the rod under load
- 13 GPM two-stage pump, 8.5 gal capacity, four-stage filtration
- 8 in. high-carbon steel wedge with heavy-duty log dislodger
- 25 in. log opening on an industrial I-beam
- Tow-ready — 2 in. coupler, highway-rated tires
- Honda GX200 commercial engine
Specifications
| Model | VH1730GX |
| Brand | BravePro |
| Splitting Force | 30 tons |
| Orientation | Horizontal and vertical |
| Cycle Time | ~14 seconds |
| Cylinder | 5 x 24 in., trunnion mount, 2 in. rod |
| Pump | 13 GPM two stage |
| Hydraulic Capacity | 8.5 gallons, four-stage filtration |
| Wedge | 8 in. high-carbon steel with log dislodger |
| Log Opening | 25 in. |
| Beam | Industrial I-beam |
| Engine | Honda GX200 |
| Shipping Weight | 650 lbs (295 kg) |
What's Included
- BravePro VH1730GX log splitter
- Honda GX200 engine, factory installed
- 2 in. ball coupler and highway-rated tires
- Owner's manual and engine documentation
Add To Your Machine
Shipping
This machine ships by LTL freight. Freight is quoted separately and confirmed with you in writing before anything is charged — we do not guess at freight costs.
Brave has not published video footage of this model. There is footage of the VH1730GC, which is the same 30-ton frame with a residential GC190 engine rather than this commercial GX200 — some sellers put that video on this page, but it is a different machine and we have left it off.
