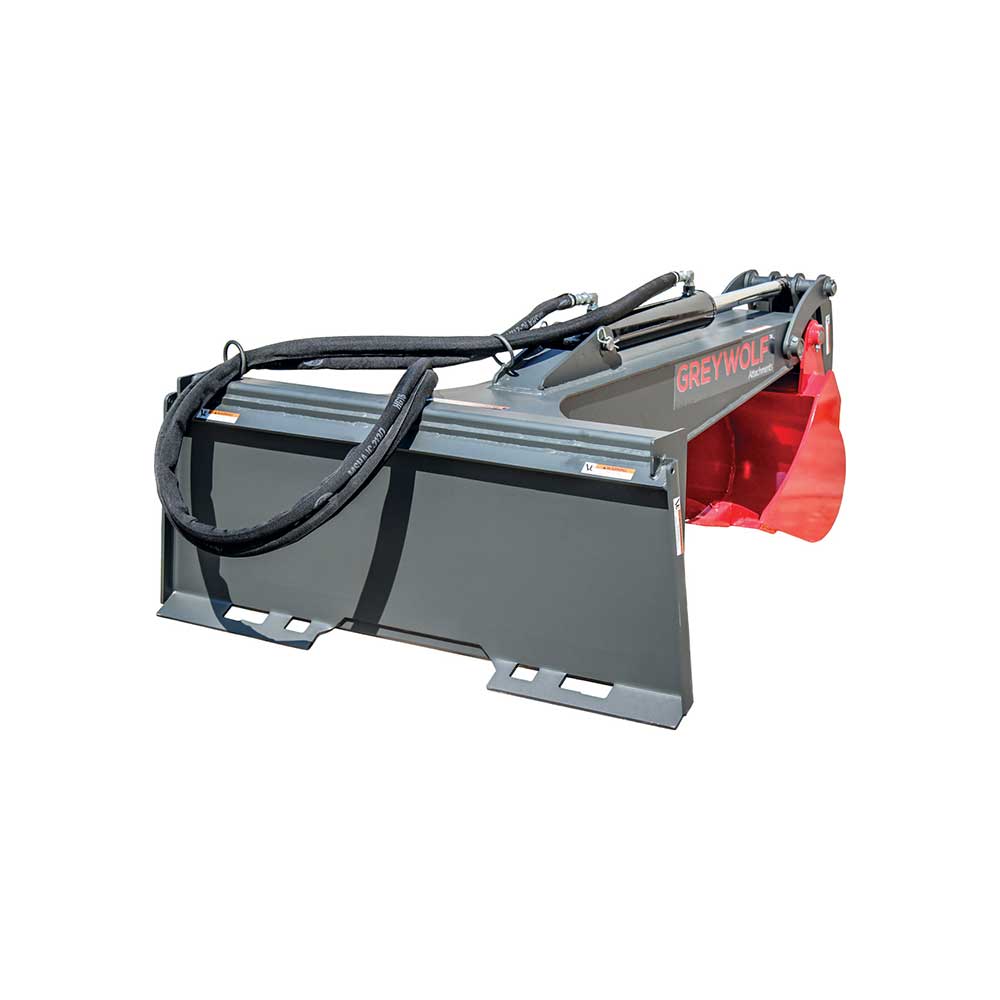

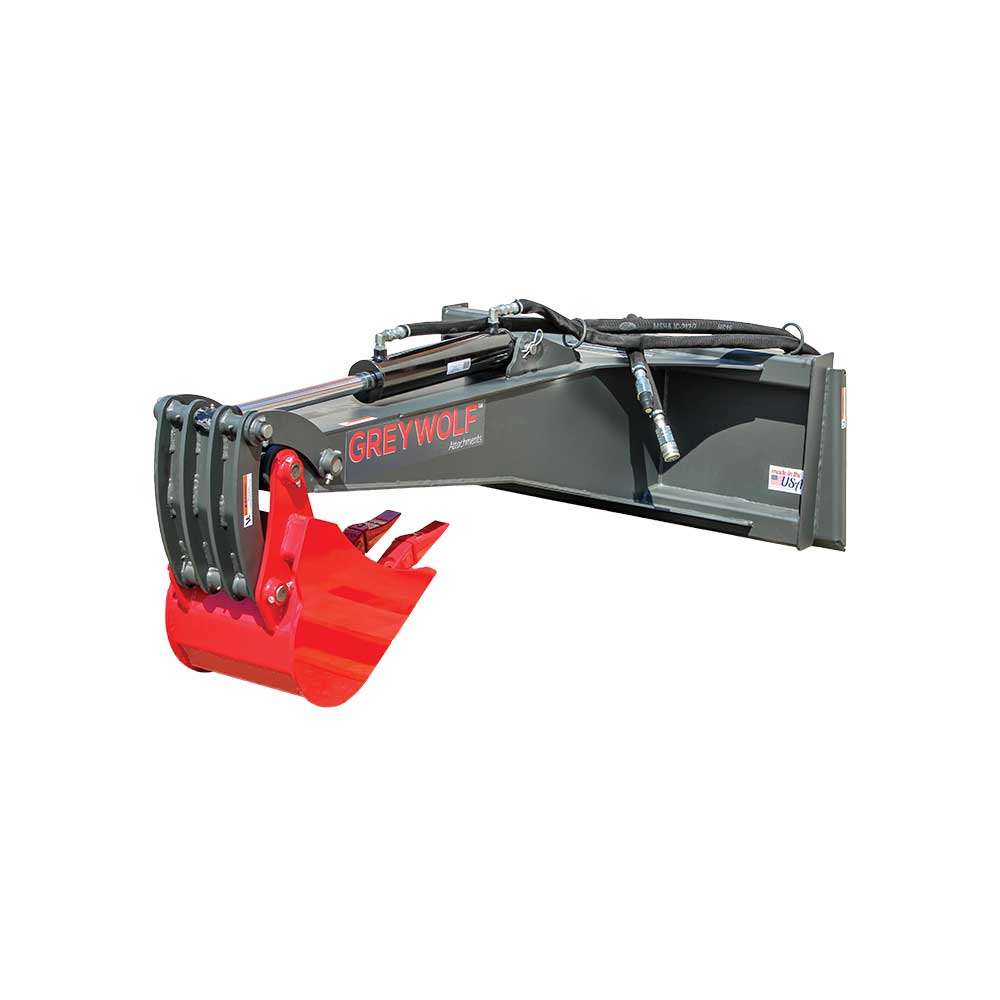

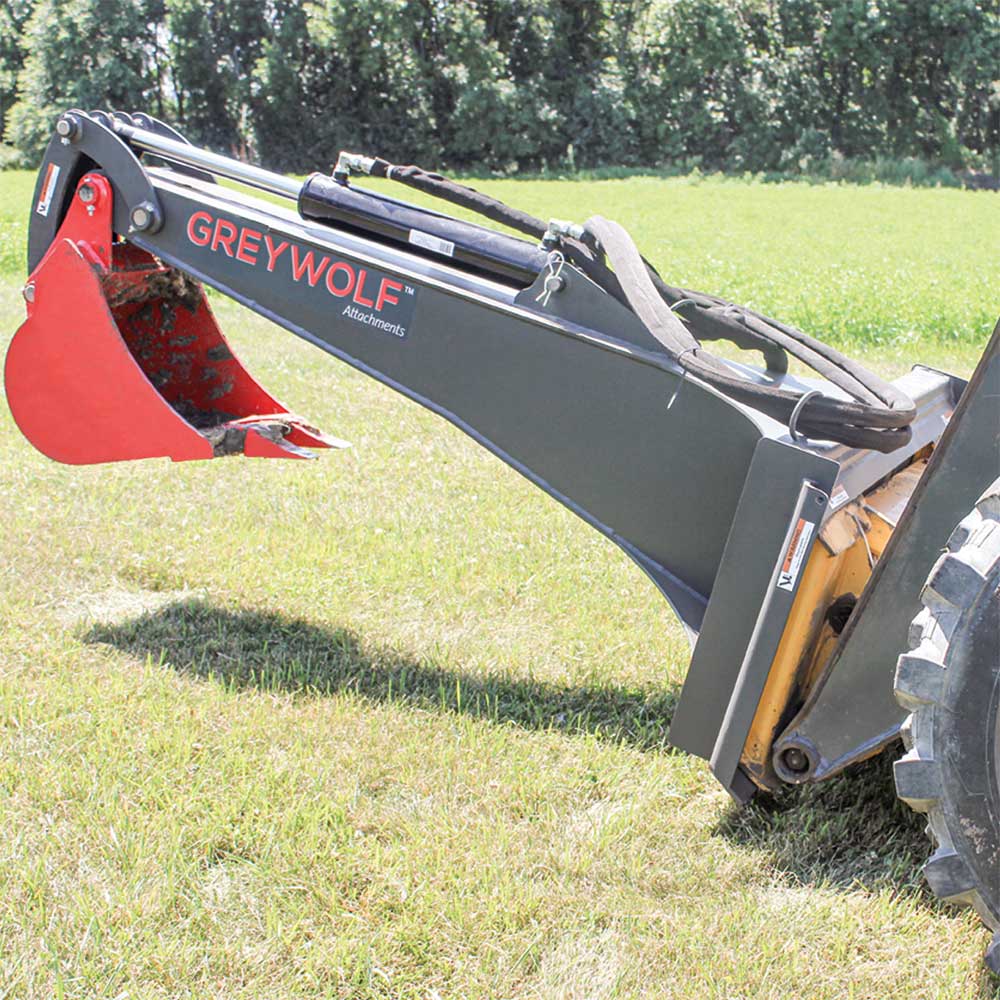

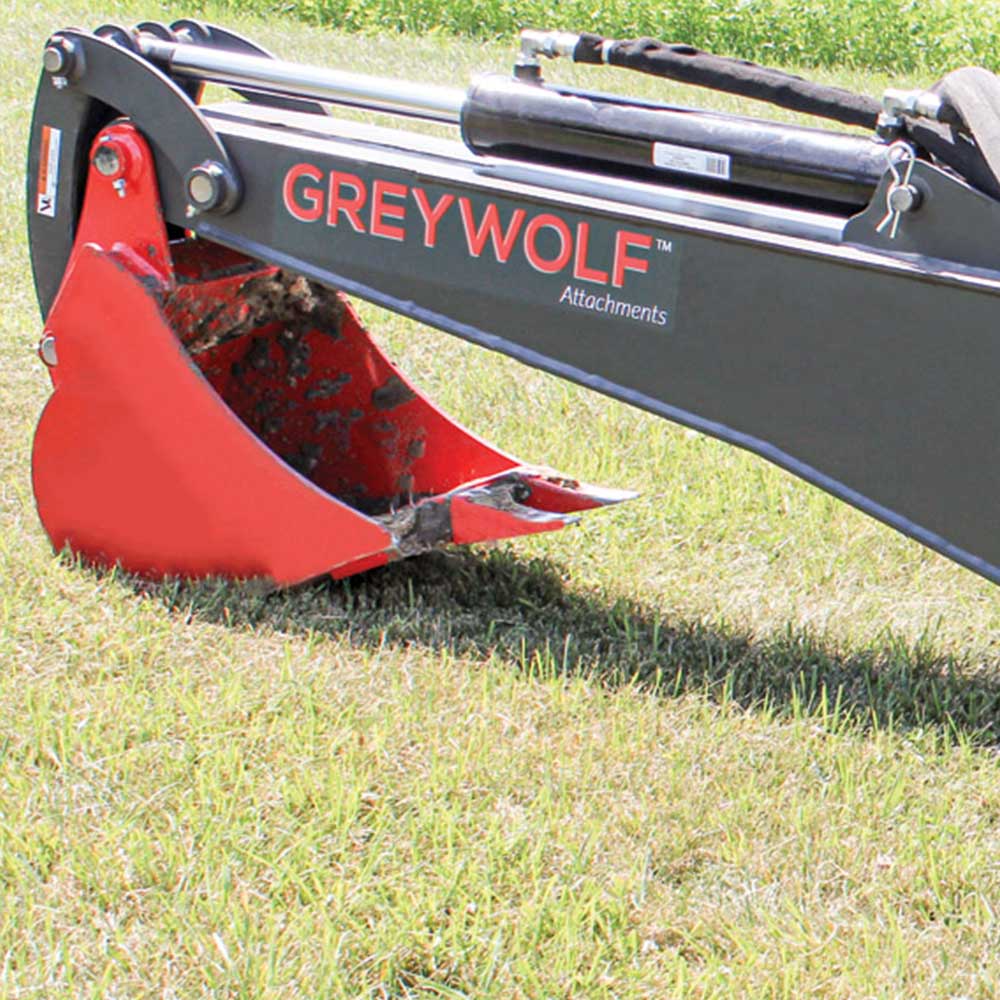

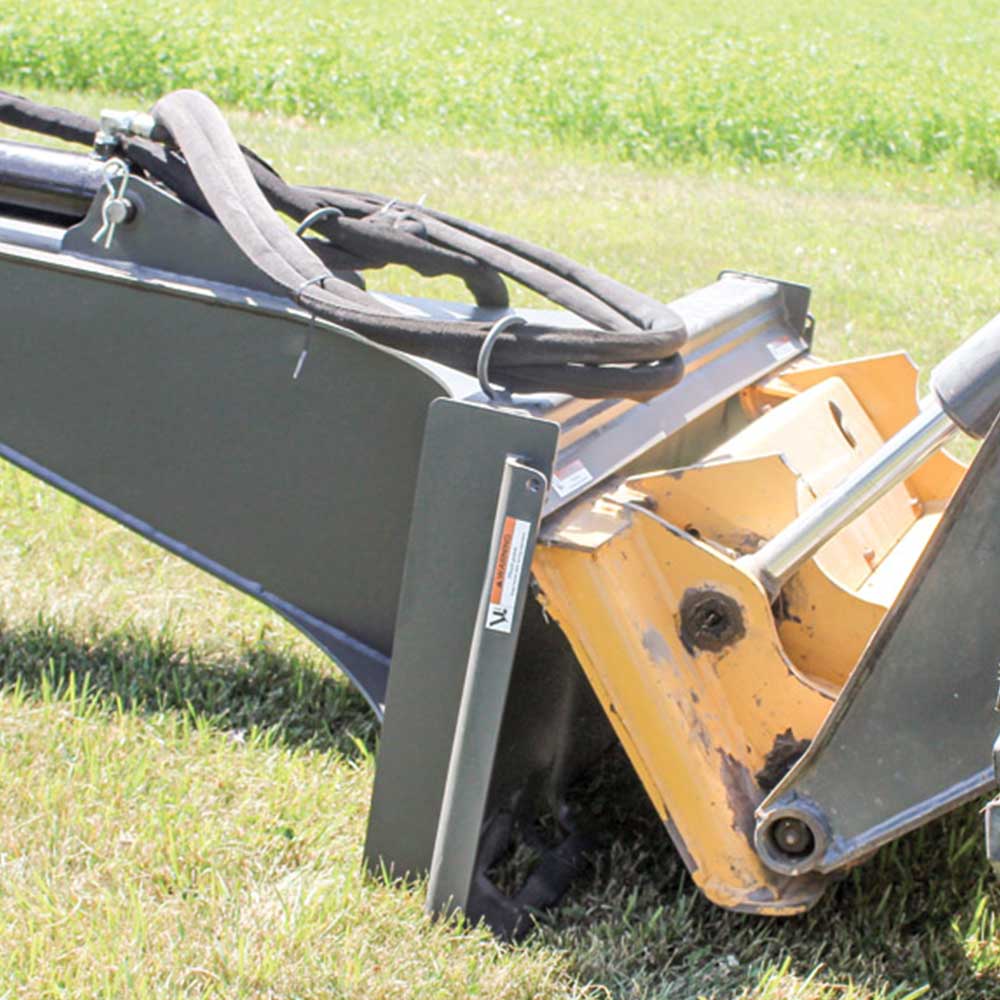

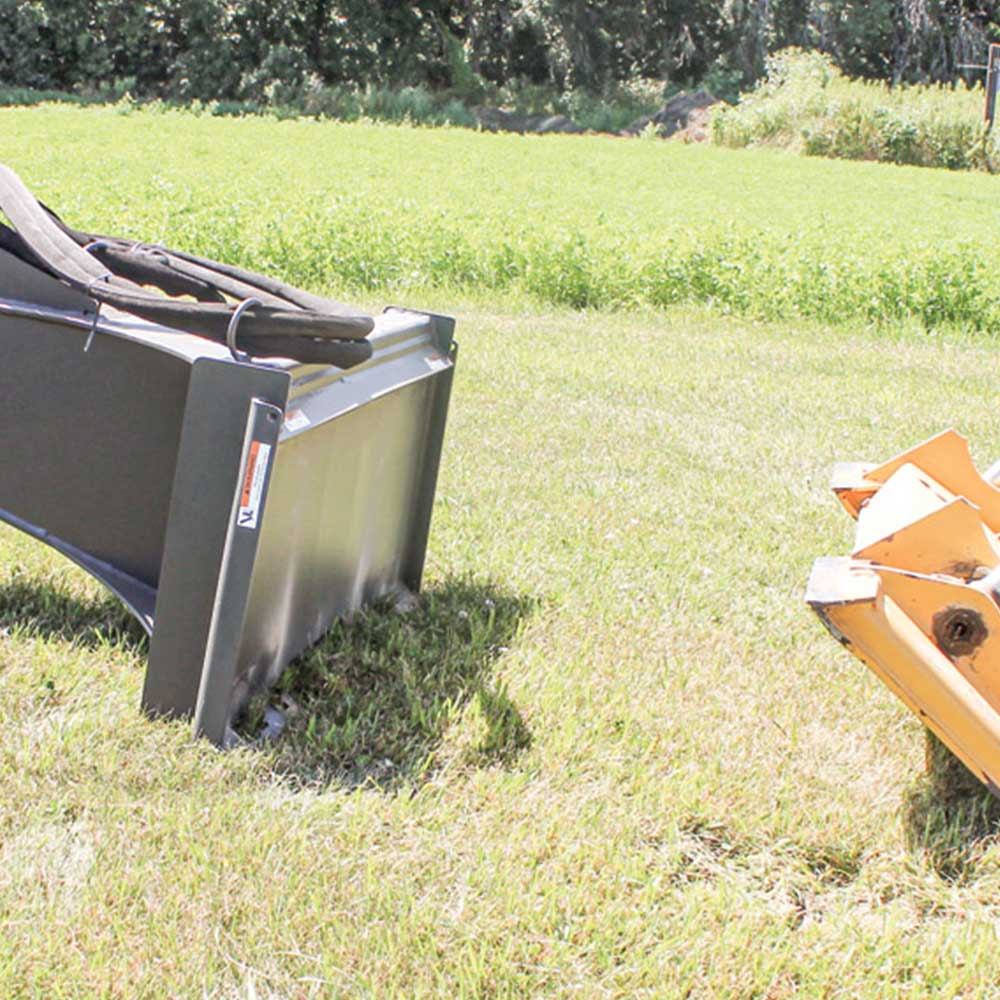

GreyWolf Backhoe Attachment for Skid Steer Loaders — 6 Ft. 8 In. Dig Depth, 12 In. Bucket
GreyWolf Backhoe Attachment for Skid Steer Loaders — 6 Ft. 8 In. Dig Depth, 12 In. Bucket is backordered and will ship as soon as it is back in stock.
Delivery Options
Choose Freight Delivery or Own Freight to continue.
Request received
We are pricing your freight now. You will have an exact delivered cost by email within one business day, and nothing is charged until you approve it.
Ships LTL freight — 630 lbs
Freight on this machine is quoted, not a flat fee — the cost depends on your delivery address and whether you have a loading dock. We confirm the exact freight cost with you in writing before you pay a cent. Curbside delivery is standard; liftgate available. See our freight & delivery guide.
SSL secured checkout — your payment details are encrypted and are never stored on our servers.
We’re Here When You Need Us
Renting a mini excavator for a weekend costs real money, and it means a second machine on the trailer. This backhoe turns the skid steer you already own into a digging machine — 6 ft. 8 in. of digging depth on a universal quick-attach plate, on and off in a couple of minutes.
It is built like the loader it hangs off. The boom is quarter-inch steel, box-framed rather than open channel, so it resists twisting when you are prying at a root or a buried rock instead of digging clean soil. The quick-attach plate is 5/16 in. steel, and the cylinder is a 3 in. bore with a 16 in. stroke rated to 3,500 PSI — the top of the range for standard skid steer auxiliary hydraulics.
A 12 in. bucket with two replaceable teeth is included, and the hoses come already fitted with flat-face couplers — 8 ft. and 9 ft., sleeve-protected so they do not chafe through against the boom. Nothing extra to buy before the first job.
Key Features & Benefits
- 6 ft. 8 in. maximum digging depth — footings, trenches, waterlines, stump holes
- Quarter-inch box-framed steel boom — resists twist under prying loads, not just digging loads
- 12 in. bucket included with two replaceable teeth
- 3 in. bore x 16 in. stroke cylinder, rated to 3,500 PSI
- Flat-face couplers and sleeve-protected hoses (8 ft. and 9 ft.) fitted from the factory
- 5/16 in. steel universal quick-attach plate — fits Bobcat, CAT, John Deere, Kubota, Case, New Holland, Gehl, Mustang, Takeuchi and ASV
- Optional 20 in. bucket with four replaceable teeth available separately
Specifications
| Specifications | Details |
|---|---|
| Model | 1065 |
| Brand | GreyWolf |
| Type | Backhoe attachment, universal skid steer quick attach |
| Maximum Digging Depth | 6 ft. 8 in. |
| Overall Dimensions | 49 x 28 x 70 in. (W x H x L) |
| Weight | 630 lbs — see the note below |
| Bucket Included | 12 in. wide, 2 replaceable teeth |
| Optional Bucket | 20 in. wide, 4 replaceable teeth — sold separately |
| Boom | 1/4 in. steel, box framed |
| Quick-Attach Plate | 5/16 in. steel |
| Cylinder | 3 in. bore x 16 in. stroke |
| Maximum Pressure | 3,500 PSI |
| Hoses | 8 ft. and 9 ft., sleeve protected, flat-face couplers included |
| Finish | Gray and red powder coat |
| Origin | Made in the USA with US and imported components |
What the manufacturer does not publish, and we will not invent: reach, swing arc, stabilizer legs, and whether a seat or control station is included are not stated in any GreyWolf document. Neither is the required GPM — only the 3,500 PSI maximum. If you are matching this to a specific machine or a specific trench, ask us and we will put the question to the manufacturer before you order. The 630 lb figure is published without being labelled as either shipping or bare weight.
What's Included
- GreyWolf 1065 backhoe attachment
- 12 in. bucket with 2 replaceable teeth
- 8 ft. and 9 ft. sleeve-protected hydraulic hoses with flat-face couplers
- Universal skid steer quick-attach plate, 5/16 in. steel
Add To Your Machine
- GreyWolf stump bucket — for prying out what the backhoe has dug around
- GreyWolf Rock Devil — lifts buried rock out without excavating the whole area
- All skid steer attachments
Ordering more than one attachment? Put them on a single freight quote — one truck is materially cheaper than two.
