DAKE | SKU:
977102

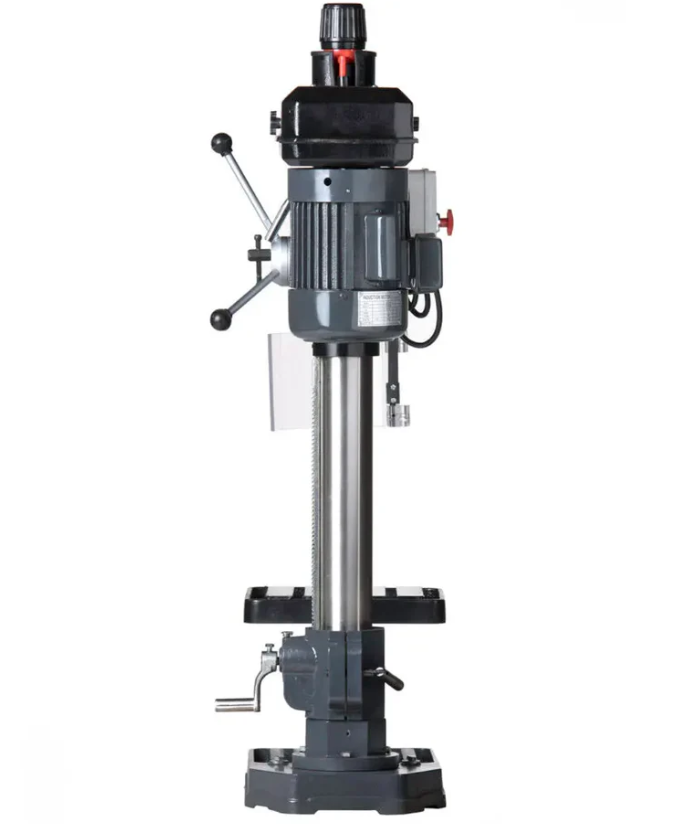

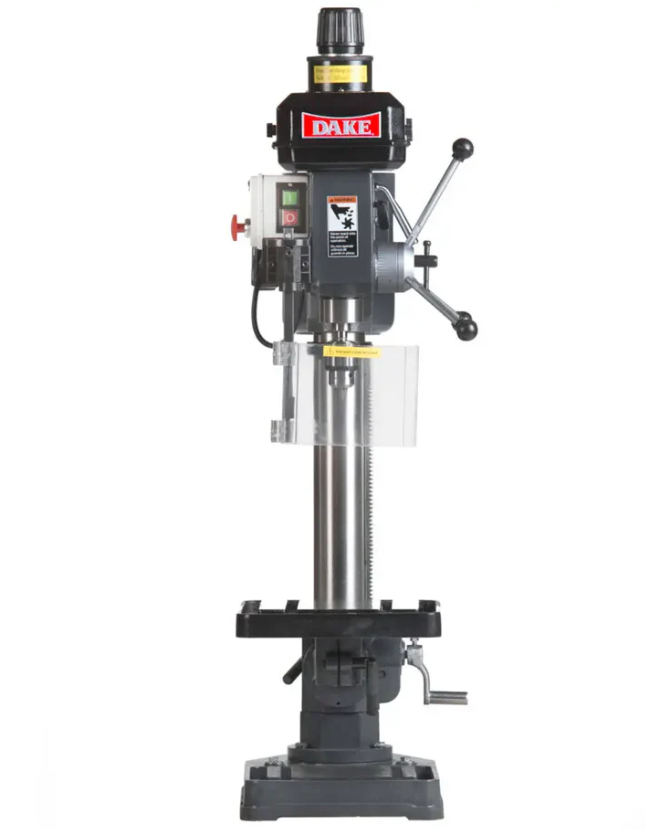

Dake Bench Model Drill Presses
Regular price
$2,165.00
Unit price
Dake Bench Model Drill Presses is backordered and will ship as soon as it is back in stock.
Description
Description
Model TB-16V
5/8" Drill Capacity
Bench top variable speed drill press that is ideal for cell applications requiring fast tooling changes. Featuring a locking handle hub for repeatable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head. The speed can be easily adjusted while drilling by turning the large selector knob on the top of the drill.
Features
- A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
- Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
- Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing
- Top mounted speed selector knob with convenient speed range indicators allows operator to dial in optimal speed range
- CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover
- Massive cast head, machined column, and sturdy cast base reduces vibration
- Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck
- Handle has 3 spokes with spring return for precise operator control and ergonomic operation
Standard Equipment
- ½” Keyed chuck
- Drift for bit removal
- Plexiglas chip and chuck guard
| Model Number | TB-16V | |
|---|---|---|
| Part Number | 977102 | |
| Drill Capacity (in) | 5/8 | |
| Horsepower | 1/2 | |
| Motor | n/a | |
| Spindle Taper | MT2 | |
| Working Diameter (in) | 14-1/8 | |
| Number Of Speeds | Mechanical Variator | |
| Spindle Speed Range (rpm) | 545-4,000 | |
| Electrics | 110V 1PH | |
| Weight (lbs) | 175 | |
| Spindle Travel (in) | 3-1/8 | |
| Column Diameter (in) | 3-1/8 | |
| Table Depth (in) | 11-3/4 | |
| Table Width (in) | 11-3/4 | |
| Base Depth (in) | 17-3/4 | |
| Base Width (in) | 12-1/4 | |
| Spindle To Table (in) | 16-1/2 | |
| Spindle To Base (in) | 26-1/2 | |
| Overall Height (in) | 42-1/2 | |
