MechMaxx  |  SKU: 500014

MechMaxx 1022V 10" x 22" Industrial Metal Lathe — 1.5HP Brushless, Variable Speed

$2,599.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $64.98 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
9-7/8in. swing
Benchtop Metal Lathe
Between centers21-5/8 in.
Motor1.5 HP

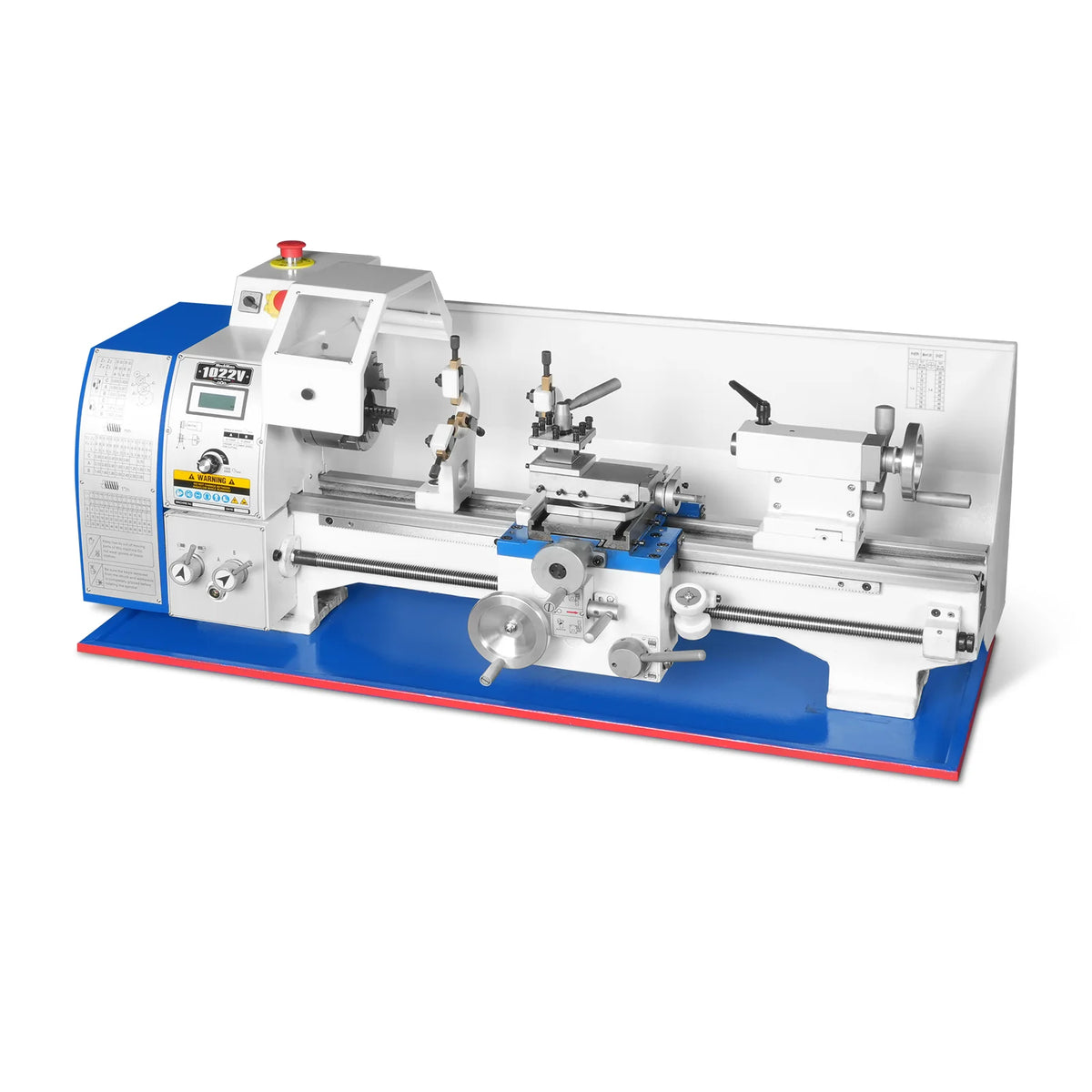

MechMaxx 1022V 10" x 22" Benchtop Metal Lathe

The MechMaxx 1022V is a benchtop metal lathe with a 1.5 HP (1.1 kW) brushless motor that runs on 110V, 60 Hz single-phase power. It swings 9-7/8 in. (250 mm) over the bed and holds 21-5/8 in. (550 mm) between centers.

Spindle speed is variable from 0 to 2,000 RPM. The one-piece spindle has a 1-1/2 in. (38 mm) bore and an MT5 taper, and the lathe has power feed in both the longitudinal and cross directions.

Inch and Metric Threading

Change gears cut inch threads from 8 to 80 TPI and metric pitches from 0.35 to 3 mm, with a thread dial indicator for repeat passes.

Ready to Cut

MechMaxx includes a 5 in. (125 mm) 3-jaw chuck, steady rest, follow rest, tool post and thread dial with the machine.

Key features and benefits

MechMaxx 1022V 10 x 22 benchtop metal lathe
  • 1.5 HP brushless motor1.1 kW on 110V, 60 Hz single-phase power.
  • 0-2,000 RPM variableSet the spindle speed to suit the material and the cut.
  • 1-1/2 in. spindle bore38 mm bore through a one-piece spindle with an MT5 taper.
  • Power feed, two directionsLongitudinal feeds 0.0025-0.014 in./rev, cross feeds 0.0014-0.004 in./rev.
  • 8-80 TPI threadingPlus metric pitches from 0.35 to 3 mm, with a thread dial indicator.
  • MT2 tailstock3 in. (75 mm) of quill travel for drilling and center support.
  • Steady and follow rests includedSupport long, thin work while turning.
  • Tool box includedChange gear set, chuck key, internal jaw set, MT3 and MT2 dead centers, wrenches, hex keys, screwdrivers and oil bottles.

Metal lathe specifications

Specification Details
Model / SKU 1022V / 500014
Motor 1.5 HP (1.1 kW) brushless
Power 110V, 60 Hz, single-phase
Swing over bed 9-7/8 in. (250 mm)
Swing over cross slide 5-1/2 in. (140 mm)
Swing over saddle 5 in. (127 mm)
Distance between centers 21-5/8 in. (550 mm)
Spindle bore 1-1/2 in. (38 mm)
Spindle One-piece
Spindle taper MT5
Spindle speeds Variable, 0-2,000 RPM
Tailstock taper MT2
Tailstock quill travel 3 in. (75 mm)
Compound rest travel 3 in.
Carriage travel 19-5/8 in. (500 mm)
Longitudinal feeds 0.0025-0.014 in./rev
Cross feeds 0.0014-0.004 in./rev
Leadscrew 8 TPI
Inch threads 8-80 TPI
Metric threads 0.35-3.0 mm pitch
Max tool size 15/32 in. (12 mm)
Chuck 5 in. (125 mm) 3-jaw
Thread dial indicator Yes
Coolant system Optional
Overall dimensions 44 x 25 x 19 in.

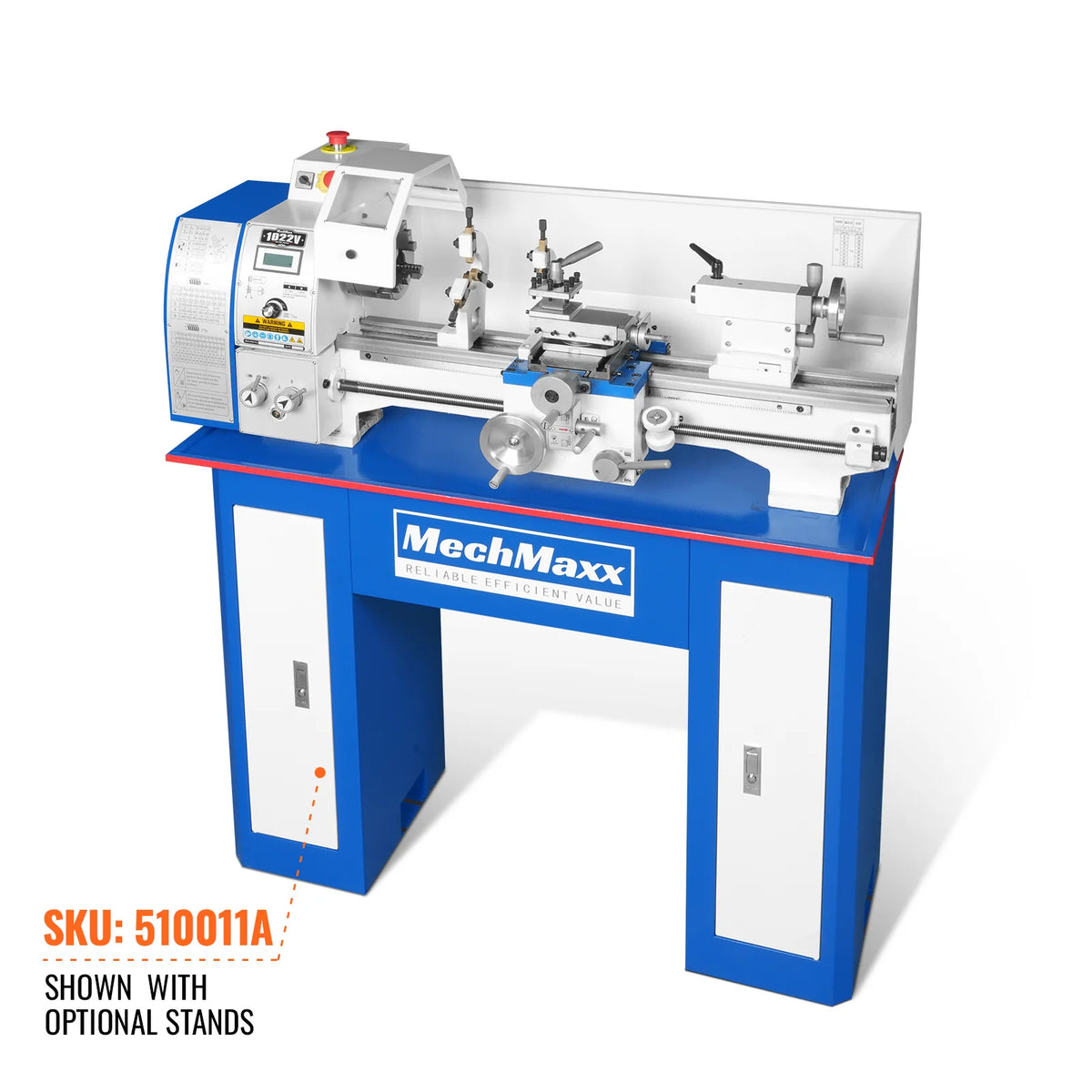

Stand Optional, not included
Shipping weight 308/352 lb (140/160 kg), as listed by MechMaxx
Warranty 1 year from MechMaxx

Documents

Owner's manual

MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manualEnglish · Key pages below
Download
MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manual, Cover (page 1)
MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manual, Controls (page 4)
MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manual, Specifications (page 5)
MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manual, Installation (page 9)
MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manual, Maintenance (page 27)
MechMaxx 1022V / 1022VD / 1030V / 1030VD benchtop lathe owner's manual, Components (page 32)

See it in action

MechMaxx 1022V questions

What power does the 1022V need?

110V, 60 Hz, single-phase for the 1.5 HP (1.1 kW) motor. MechMaxx lists a 10 A draw on the product page.

Does it come with a stand?

No. It is a benchtop lathe, and MechMaxx lists the stand as optional. Plan a sturdy bench that can carry its weight.

What comes with it?

A 5 in. (125 mm) 3-jaw chuck, steady rest, follow rest, tool post, thread dial and a tool box with change gears, dead centers, wrenches and screwdrivers.

Can it cut metric threads?

Yes. It cuts inch threads from 8 to 80 TPI and metric pitches from 0.35 to 3 mm.

What is the warranty?

MechMaxx covers the 1022V with a 1-year warranty and lifetime technical support by phone or email.
