MechMaxx  |  SKU: 500005

MechMaxx 1030V 10" x 30" Benchtop Metal Lathe — 1.5HP Brushless, 1.5" Spindle Bore

$2,799.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $69.98 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
9-7/8in. swing
Benchtop Metal Lathe
Between centers29-1/2 in.
Motor1.5 HP

MechMaxx 1030V 10" x 30" Benchtop Metal Lathe

The MechMaxx 1030V is a benchtop metal lathe with a 1.5 HP (1.1 kW) brushless motor that runs on 110V, 60 Hz single-phase power. It swings 9-7/8 in. (250 mm) over the bed and holds 29-1/2 in. (750 mm) between centers.

Spindle speed is variable, and the one-piece spindle has a 1-1/2 in. (38 mm) bore. The lathe has power feed in both the longitudinal and cross directions.

Inch and Metric Threading

Change gears cut inch threads from 8 to 80 TPI and metric pitches from 0.35 to 3 mm, with a thread dial indicator for repeat passes.

Ready to Cut

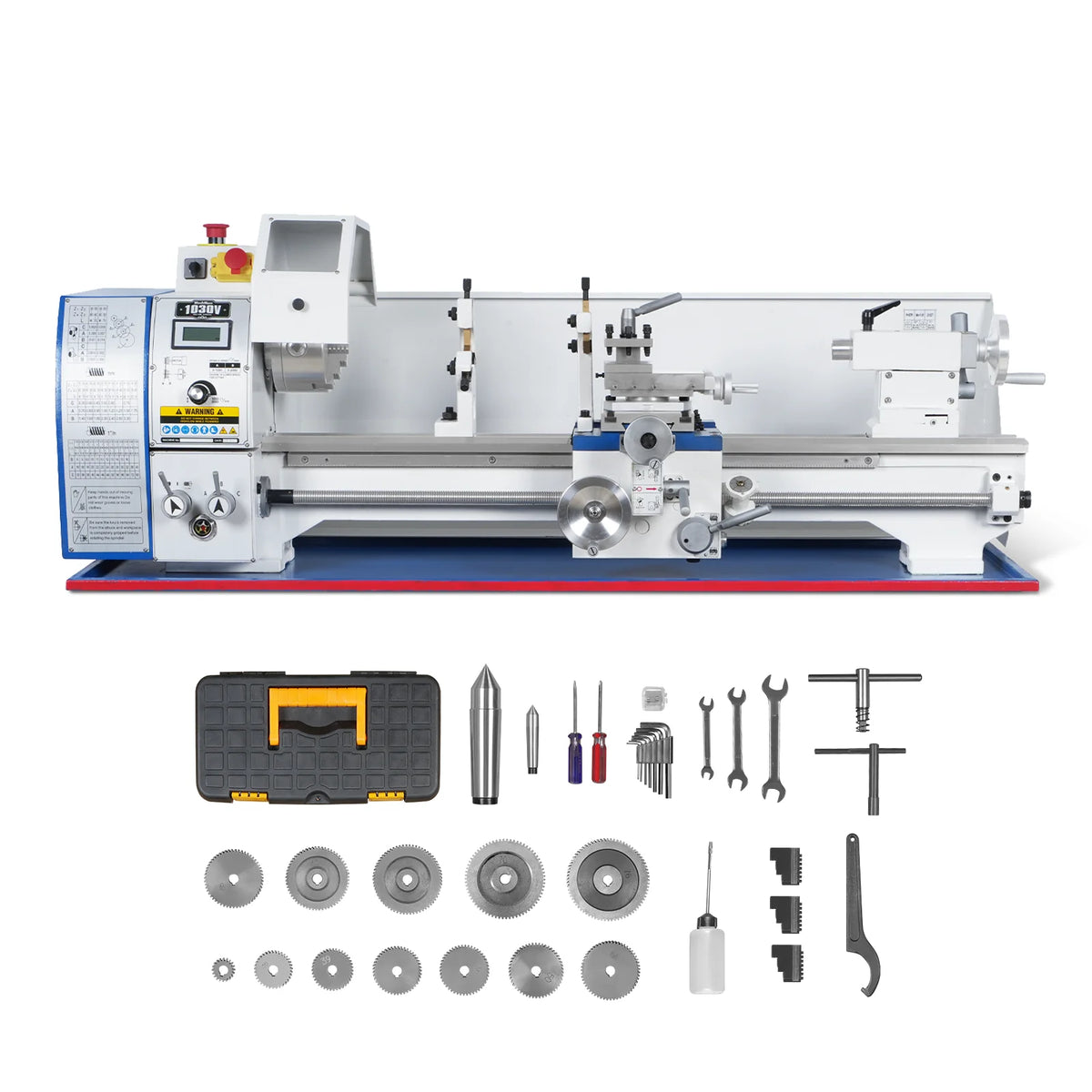

MechMaxx includes a 5 in. (125 mm) 3-jaw chuck, steady rest, follow rest and tool post with the machine.

Key features and benefits

MechMaxx 1030V 10 x 30 benchtop metal lathe
  • 1.5 HP brushless motor1.1 kW on 110V, 60 Hz single-phase power.
  • Variable speedSet the spindle speed to suit the material and the cut.
  • 1-1/2 in. spindle bore38 mm bore through a one-piece spindle.
  • Power feed, two directionsLongitudinal feeds 0.0025-0.014 in./rev, cross feeds 0.0014-0.004 in./rev.
  • 8-80 TPI threadingPlus metric pitches from 0.35 to 3 mm, with a thread dial indicator.
  • MT2 tailstock3 in. (75 mm) of quill travel for drilling and center support.
  • Steady and follow rests includedSupport long, thin work while turning.
  • Tool box includedChange gear set, chuck key, internal jaw set, MT3 and MT2 dead centers, wrenches, hex keys, screwdrivers and oil bottles.

Metal lathe specifications

Specification Details
Model / SKU 1030V / 500005
Motor 1.5 HP (1.1 kW) brushless
Power 110V, 60 Hz, single-phase
Swing over bed 9-7/8 in. (250 mm)
Swing over cross slide 5-1/2 in. (140 mm)
Swing over saddle 5 in. (127 mm)
Distance between centers 29-1/2 in. (750 mm)
Bed width 5-1/2 in. (140 mm)
Spindle bore 1-1/2 in. (38 mm)
Spindle One-piece
Spindle speeds Variable
Tailstock taper MT2
Tailstock quill travel 3 in. (75 mm)
Compound rest travel 3 in.
Carriage travel 27-1/2 in. (700 mm)
Longitudinal feeds 0.0025-0.014 in./rev
Cross feeds 0.0014-0.004 in./rev
Leadscrew 8 TPI
Inch threads 8-80 TPI
Metric threads 0.35-3.0 mm pitch
Max tool size 15/32 in. (12 mm)
Chuck 5 in. (125 mm) 3-jaw
Thread dial indicator Yes
Overall dimensions 52 x 25 x 19 in. (1,320 x 635 x 480 mm)
Stand Optional, not included
Shipping weight 399 lb (181 kg)
Warranty 1 year from MechMaxx

Documents

Owner's manual

MechMaxx 1030V / 1030VD benchtop metal lathe owner's manualEnglish · Key pages below
Download
MechMaxx 1030V / 1030VD benchtop metal lathe owner's manual, Cover (page 1)
MechMaxx 1030V / 1030VD benchtop metal lathe owner's manual, Controls (page 4)
MechMaxx 1030V / 1030VD benchtop metal lathe owner's manual, Specifications (page 5)
MechMaxx 1030V / 1030VD benchtop metal lathe owner's manual, Installation (page 9)
MechMaxx 1030V / 1030VD benchtop metal lathe owner's manual, Maintenance (page 27)
MechMaxx 1030V / 1030VD benchtop metal lathe owner's manual, Components (page 32)

See it in action

MechMaxx 1030V questions

What power does the 1030V need?

110V, 60 Hz, single-phase for the 1.5 HP (1.1 kW) motor. MechMaxx lists a 10 A draw on the product page.

Does it come with a stand?

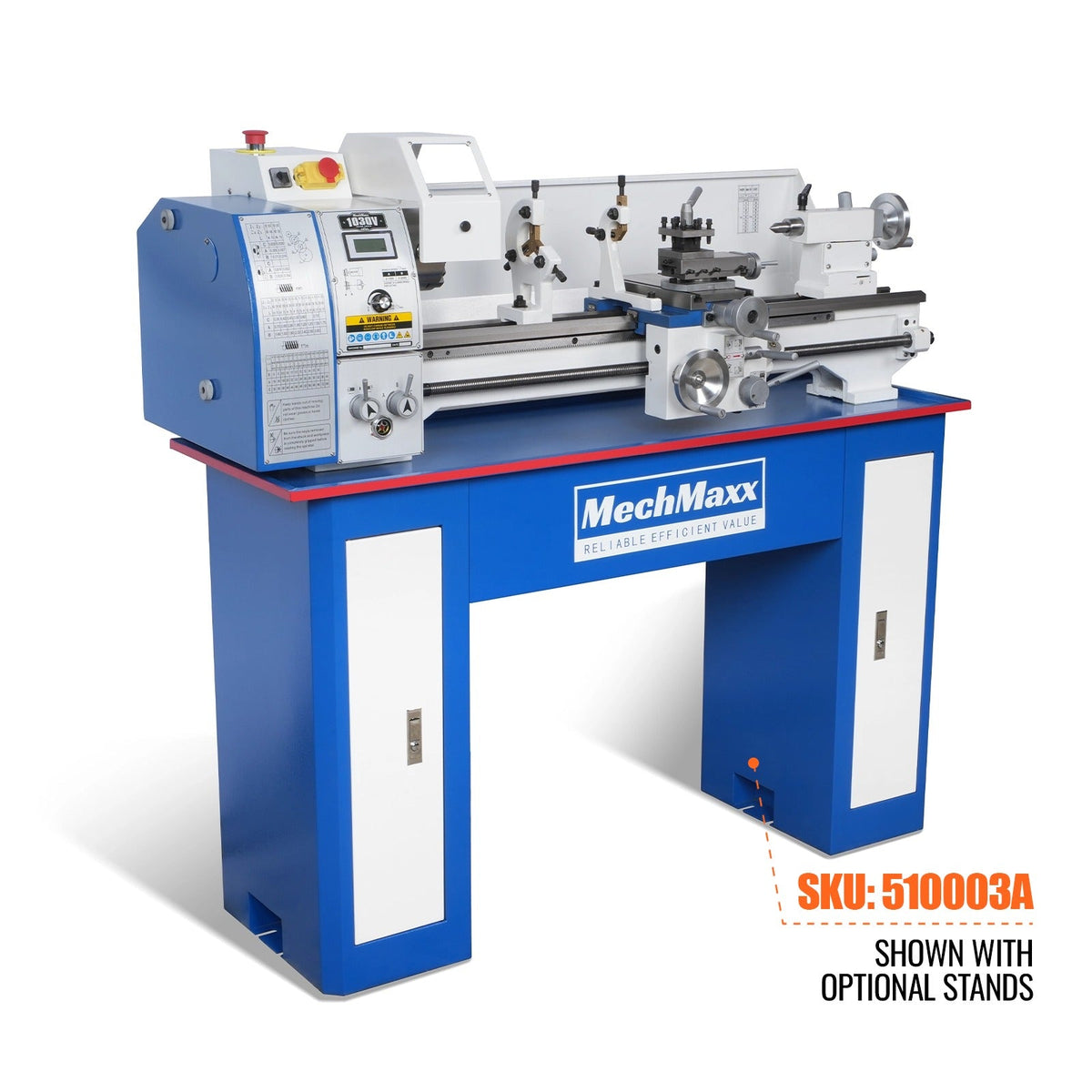

No. It is a benchtop lathe, and MechMaxx lists the stand as optional. Plan a sturdy bench that can carry its weight.

What comes with it?

A 5 in. (125 mm) 3-jaw chuck, steady rest, follow rest, tool post and a tool box with change gears, MT3 and MT2 dead centers, chuck key, wrenches and screwdrivers.

Can it cut metric threads?

Yes. It cuts inch threads from 8 to 80 TPI and metric pitches from 0.35 to 3 mm.

What is the warranty?

MechMaxx covers the 1030V with a 1-year warranty and lifetime technical support by phone or email.
