MechMaxx  |  SKU: 500102

MechMaxx 1130VC 11" x 30" Combination Lathe Mill Drill — 2HP Brushless, 1.5" Spindle Bore

$4,999.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Keep it running

Parts and add-ons that fit this machine. They ship free, with the machine or on their own.

MechMaxx 5 in. 4-Jaw Lathe Chuck

485105, Fits 1130V, 1130VD, 1130VC

$329
MechMaxx Lathe Storage Stand

510005A, Fits 1130V, 1130VD, 1130VC

$469
MechMaxx Swivel Base Vise, 100 mm

485382, Fits VM25L, VM25LD, 1030VC, 1130VC

$100

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $124.98 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
29-1/2in. between centers
Combination Lathe Mill Drill
Spindle bore1-1/2 in.
Mill taperR8

MechMaxx 1130VC 11" x 30" Combination Lathe Mill Drill

The MechMaxx 1130VC is a benchtop lathe with a vertical milling and drilling head mounted on the same machine. Built on the 1130V lathe, it holds 29-1/2 in. (750 mm) between centers and runs on 110V, 60 Hz single-phase power.

The lathe has a D1-4 camlock spindle with a 1-1/2 in. (38 mm) bore and an MT5 taper. The milling head has its own 1.5 HP (1,100 W) brushless motor, an R8 spindle running 0-2,500 RPM, and tilts 90 degrees left or right.

Turn, Mill and Drill in One Setup

Cut keyways, drill bolt patterns or face mill a part without moving it to a second machine.

R8 Milling Spindle

The mill head takes standard R8 collets and tooling, secured with a 7/16 in. drawbar.

Key features and benefits

MechMaxx 1130VC 11 x 30 combination lathe mill drill
  • Lathe and mill on one baseTurning, facing, drilling, tapping, slotting and light milling on one machine.
  • D1-4 camlock lathe spindle1-1/2 in. (38 mm) bore with an MT5 taper.
  • 1.5 HP brushless mill head1,100 W motor driving an R8 spindle from 0 to 2,500 RPM.
  • Milling capacityDrills to 1 in. (25 mm), end mills to 5/8 in. (16 mm) and face mills to 2-1/2 in. (63 mm).
  • Tilting headThe mill head tilts 90 degrees left and right.
  • Inch and metric threading8-56 TPI and metric pitches, with a thread dial indicator and 9 change gears.
  • 4-way tool postMounts and indexes up to four lathe tools.

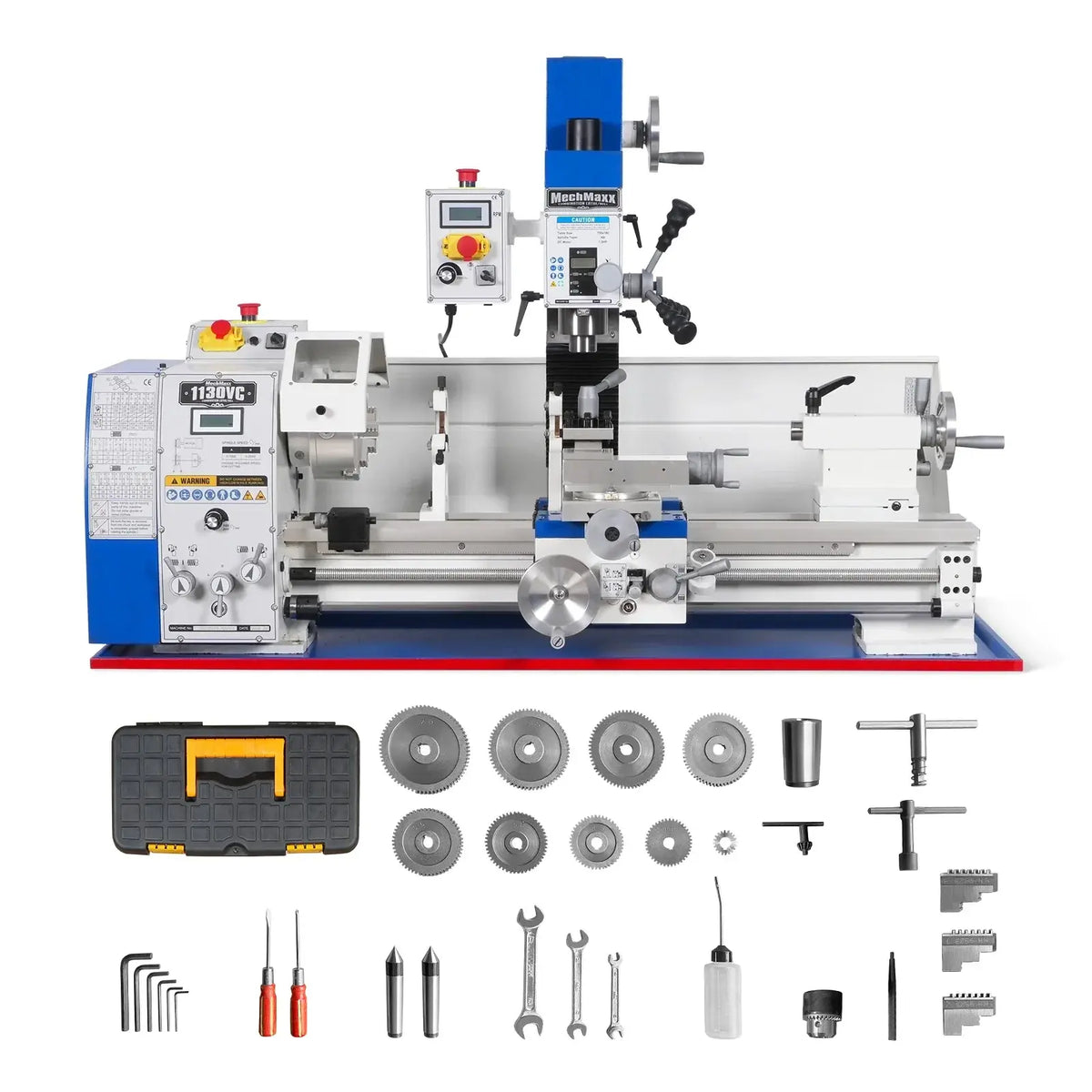

  • Tool box includedTwo MT3 dead centers, Morse taper sleeve, chuck key, internal jaw set, wrenches and screwdrivers.

Combination machine specifications

Specification Details
Model / SKU 1130VC / 500102
Power 110V, 60 Hz, single-phase
Lathe: distance between centers 29-1/2 in. (750 mm)
Lathe: bed width 180 mm (about 7 in.)
Lathe: spindle bore 1-1/2 in. (38 mm)
Lathe: spindle mount D1-4 camlock
Lathe: spindle taper MT5
Lathe: tailstock taper MT3
Lathe: inch threads 8-56 TPI
Lathe: change gears 9
Lathe: tool post 4-way
Thread dial indicator Yes
Mill: motor 1.5 HP (1,100 W) brushless
Mill: spindle taper R8
Mill: spindle speeds Variable, 0-2,500 RPM
Mill: quill travel 2 in. (50 mm)
Mill: drilling capacity 1 in. (25 mm)
Mill: end milling capacity 5/8 in. (16 mm)
Mill: face milling capacity 2-1/2 in. (63 mm)
Mill: spindle to column 7-1/2 in. (190 mm)
Mill: head tilt 90 degrees left and right
Mill: drawbar thread 7/16 in.

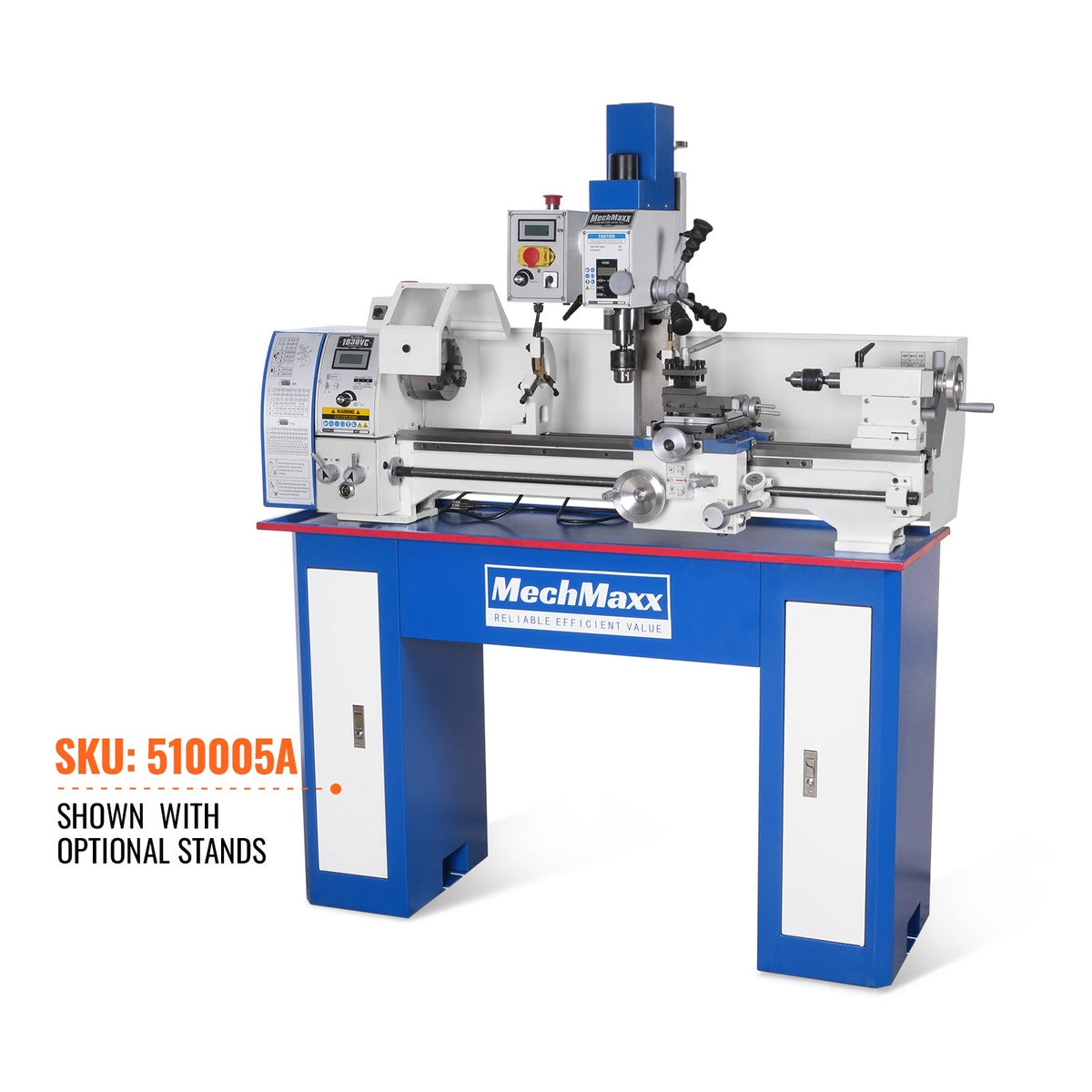

Stand Optional, not included
Shipping weight 726 lb (330 kg)
Warranty 1 year from MechMaxx

Documents

Owner's manual

MechMaxx 1130VC combination lathe mill owner's manualEnglish · Key pages below
Download
MechMaxx 1130VC combination lathe mill owner's manual, Cover (page 1)
MechMaxx 1130VC combination lathe mill owner's manual, Specifications (page 5)
MechMaxx 1130VC combination lathe mill owner's manual, Controls (page 6)
MechMaxx 1130VC combination lathe mill owner's manual, Installation (page 13)
MechMaxx 1130VC combination lathe mill owner's manual, Maintenance (page 36)
MechMaxx 1130VC combination lathe mill owner's manual, Components (page 40)

See it in action

MechMaxx 1130VC questions

What power does the 1130VC need?

110V, 60 Hz, single-phase, so it does not need a 220V circuit. The MechMaxx manual calls for a dedicated, properly grounded outlet and no extension cords.

What tooling does the mill head take?

R8. Collets, drill chucks and other R8 tooling are held with a 7/16 in. drawbar from the top of the spindle.

How big a cut can the mill head take?

MechMaxx rates it for drilling up to 1 in. (25 mm), end milling up to 5/8 in. (16 mm) and face milling up to 2-1/2 in. (63 mm).

Does it come with a stand?

No. MechMaxx lists the stand as optional, so plan a sturdy bench for a machine this heavy.

What is the warranty?

MechMaxx covers the 1130VC with a 1-year warranty and lifetime technical support by phone or email.
