MechMaxx  |  SKU: 500008

MechMaxx 1130VD 11" x 30" Benchtop Metal Lathe with DRO — 2HP Brushless

$4,099.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $102.48 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
11.4in. swing
Benchtop Metal Lathe
Between centers29-1/2 in.
Motor2 HP

MechMaxx 1130VD 11" x 30" Benchtop Metal Lathe with DRO

The MechMaxx 1130VD is a benchtop metal lathe with a factory-installed digital readout (DRO) and a 2 HP (1.5 kW) brushless motor that runs on 110V, 60 Hz single-phase power. It swings 11.4 in. (290 mm) over the bed and holds 29-1/2 in. (750 mm) between centers.

Spindle speed is variable up to 2,000 RPM through a belt drive with a 2-step pulley. The one-piece, ground spindle has a 1-1/2 in. (38 mm) bore, an MT5 taper and a D1-4 camlock nose with no adapter plate.

Factory-Installed DRO

The digital readout shows X and Z axis positions for repeatable depth control when boring, parting and step turning.

Separate Leadscrew and Feed Shaft

Power feed and threading run independently through a 3-speed gearbox, which keeps wear off the leadscrew.

Key features and benefits

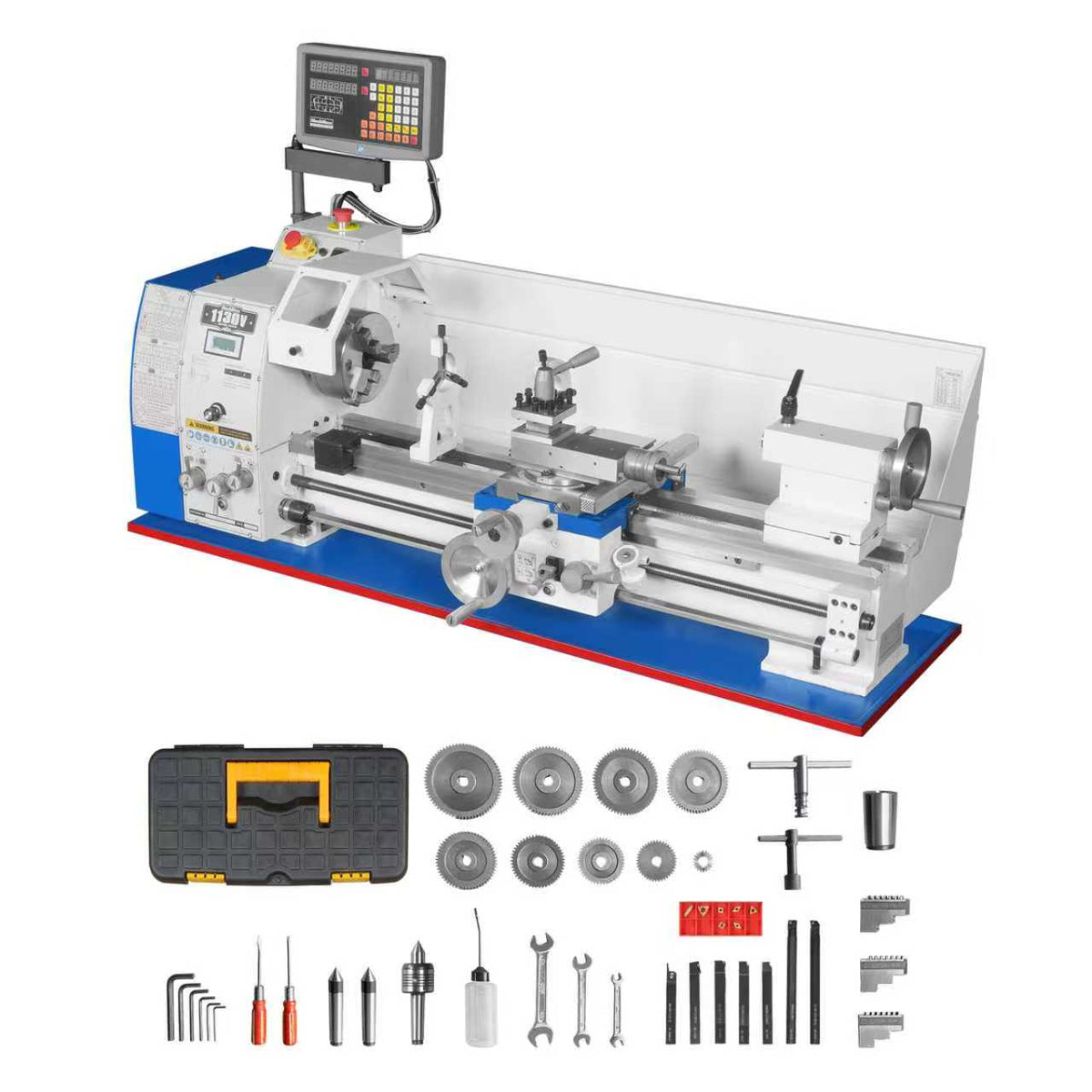

MechMaxx 1130VD 11 x 30 benchtop metal lathe with DRO and tool box
  • 2 HP brushless motor1.5 kW on 110V, 60 Hz single-phase power.
  • X/Z digital readoutFactory-installed DRO for repeatable positioning.
  • Variable speed to 2,000 RPMBelt drive with a 2-step pulley for low and high ranges.
  • D1-4 camlock spindleOne-piece ground spindle with an integrated camlock nose, MT5 taper and 1-1/2 in. (38 mm) bore.
  • Tapered roller bearingsThe spindle runs on preloaded tapered roller bearings.
  • AXA quick change tool postFast tool swaps with micrometer-adjustable tool height.
  • MT3 tailstockTakes standard MT3 centers and tooling.
  • Tool box includedTwo MT3 dead centers, Morse taper sleeve, chuck key, internal jaw set, change gear set, hex keys, wrenches and screwdrivers.

Metal lathe specifications

Specification Details
Model / SKU 1130VD / 500008
Motor 2 HP (1.5 kW) brushless
Power 110V, 60 Hz, single-phase
Digital readout (DRO) X/Z axis, factory-installed
Drive type Belt drive, 2-step pulley
Swing over bed 11.4 in. (290 mm)
Distance between centers 29-1/2 in. (750 mm)
Bed width 180 mm (about 7 in.)
Spindle bore 1-1/2 in. (38 mm)
Spindle nose D1-4 camlock
Spindle taper MT5
Spindle speeds Variable, up to 2,000 RPM
Tailstock taper MT3
Feed gearbox 3-speed
Change gears 9
Inch threads 8-56 TPI
Metric threads 0.4-3.5 mm pitch
Steady rest capacity Up to 2-1/2 in. (63 mm) diameter
Follow rest capacity Up to 2-1/2 in. (63 mm) diameter
Tool post AXA quick change
Thread dial indicator Yes

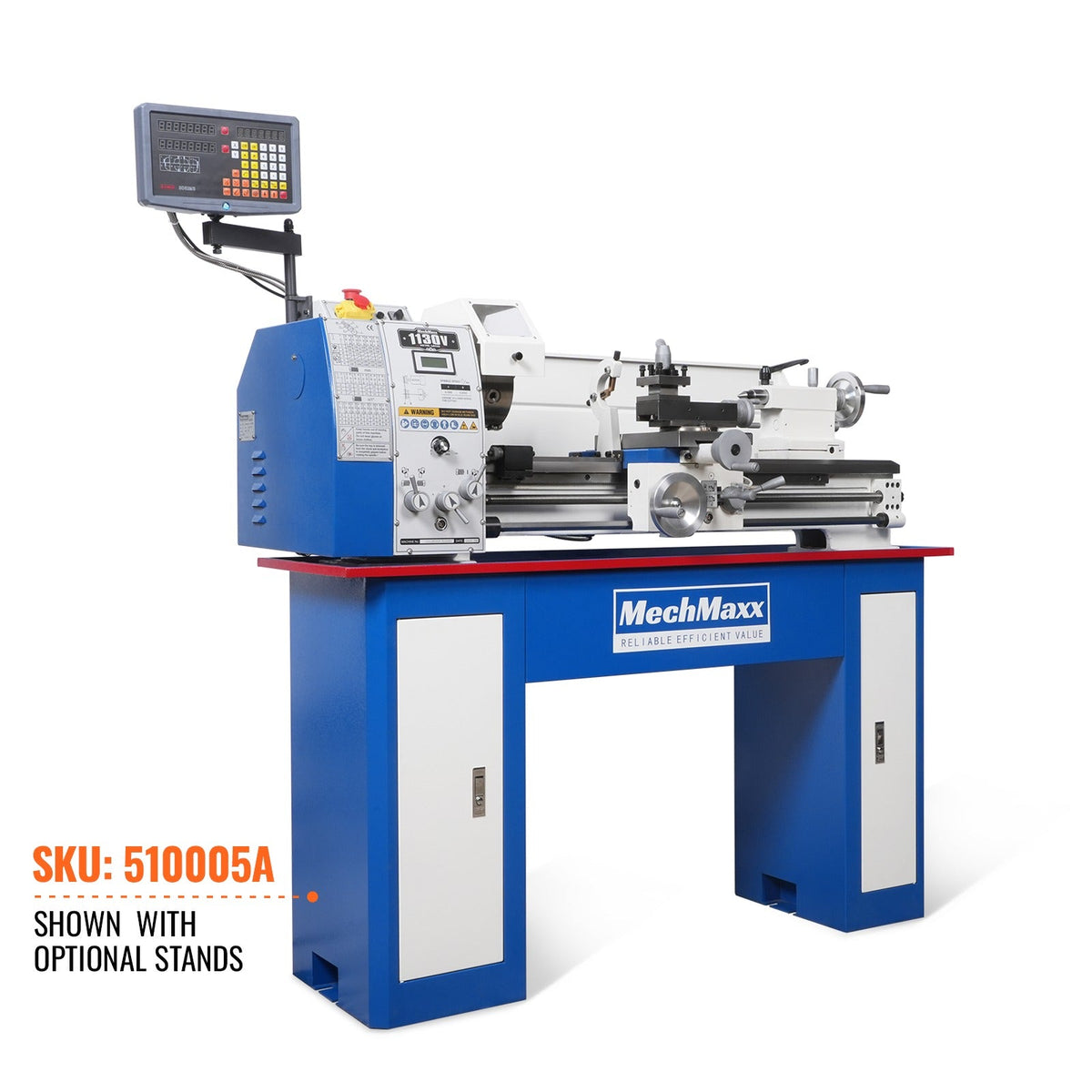

Stand Optional, not included
Shipping weight 572 lb (260 kg)
Warranty 1 year from MechMaxx

Documents

Owner's manual

MechMaxx 1130V / 1130VD precision benchtop metal lathe owner's manualEnglish · Key pages below
Download
MechMaxx 1130V / 1130VD precision benchtop metal lathe owner's manual, Cover (page 1)
MechMaxx 1130V / 1130VD precision benchtop metal lathe owner's manual, Specifications (page 5)
MechMaxx 1130V / 1130VD precision benchtop metal lathe owner's manual, Installation (page 10)
MechMaxx 1130V / 1130VD precision benchtop metal lathe owner's manual, Controls (page 13)
MechMaxx 1130V / 1130VD precision benchtop metal lathe owner's manual, Maintenance (page 24)

See it in action

MechMaxx 1130VD questions

What power does the 1130VD need?

110V, 60 Hz, single-phase for the 2 HP (1.5 kW) motor. MechMaxx lists a 20 A draw on the product page, so check that your circuit can supply it.

Does it come with a stand?

No. It is a benchtop lathe, and MechMaxx lists the stand as optional. Plan a sturdy bench that can carry its weight.

Does the spindle use an adapter plate?

No. The one-piece spindle has an integrated D1-4 camlock nose, so chucks mount directly without a threaded spindle and bolt-on plate.

What is the difference between the 1130V and 1130VD?

The 1130VD adds a factory-installed X/Z digital readout. Motor, swing, spindle and capacities are the same, and both are covered by the same MechMaxx manual.

What is the warranty?

MechMaxx covers the 1130VD with a 1-year warranty and lifetime technical support by phone or email.
