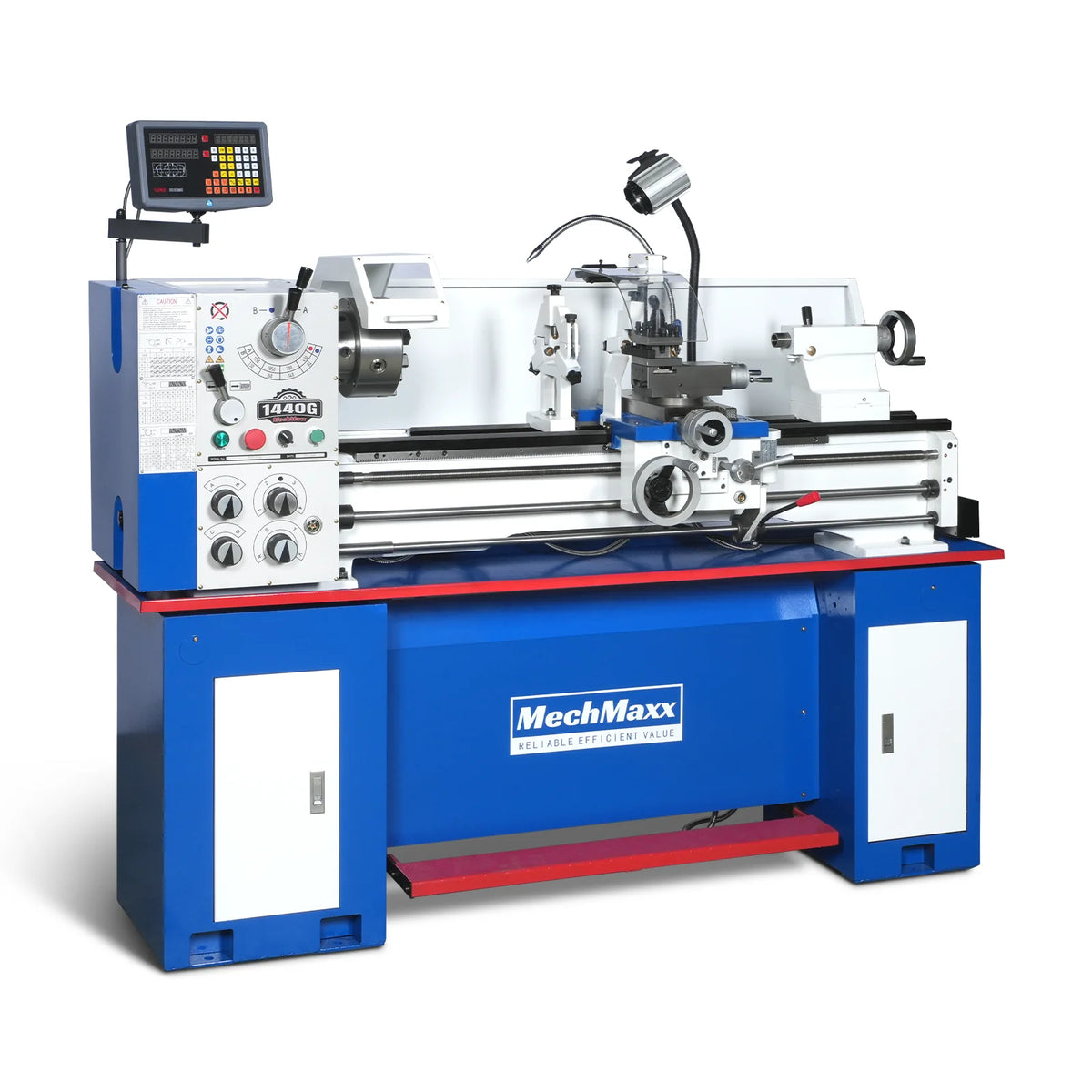

MechMaxx 1440G 14" x 40" Industrial Metal Lathe
The MechMaxx 1440G is a 14 in. x 40 in. metal lathe with a 2 HP (1,500 W) motor running on 220V, 60 Hz single-phase power. It swings 14 in. over the bed and 19-5/8 in. (500 mm) over the gap, with 39-3/8 in. (1,000 mm) between centers.
The headstock has 8 spindle speeds, and the threading gearbox cuts inch, metric, module and diametral threads from a 7/8 in. 8 TPI leadscrew.
Four Thread Systems
34 inch pitches (4-56 TPI), 26 metric pitches, 16 module pitches and 36 diametral pitches.
Coolant System Built In
A built-in coolant system and a thread dial indicator come on the machine.
Key features and benefits
- 2 HP, 220V single-phase1,500 W motor, 60 Hz. Needs a 220V circuit, not a household outlet.
- 8 spindle speedsGeared speed ranges for roughing, finishing and threading.
- 19-5/8 in. swing over the gapRemove the gap section to turn larger-diameter discs and flanges.
- 39-3/8 in. between centers1,000 mm of length for long shafts.
- Power feedLongitudinal feeds from 0.002 to 0.0548 in. per revolution.
- MT3 tailstock3-3/4 in. (95 mm) of quill travel for drilling and center support.

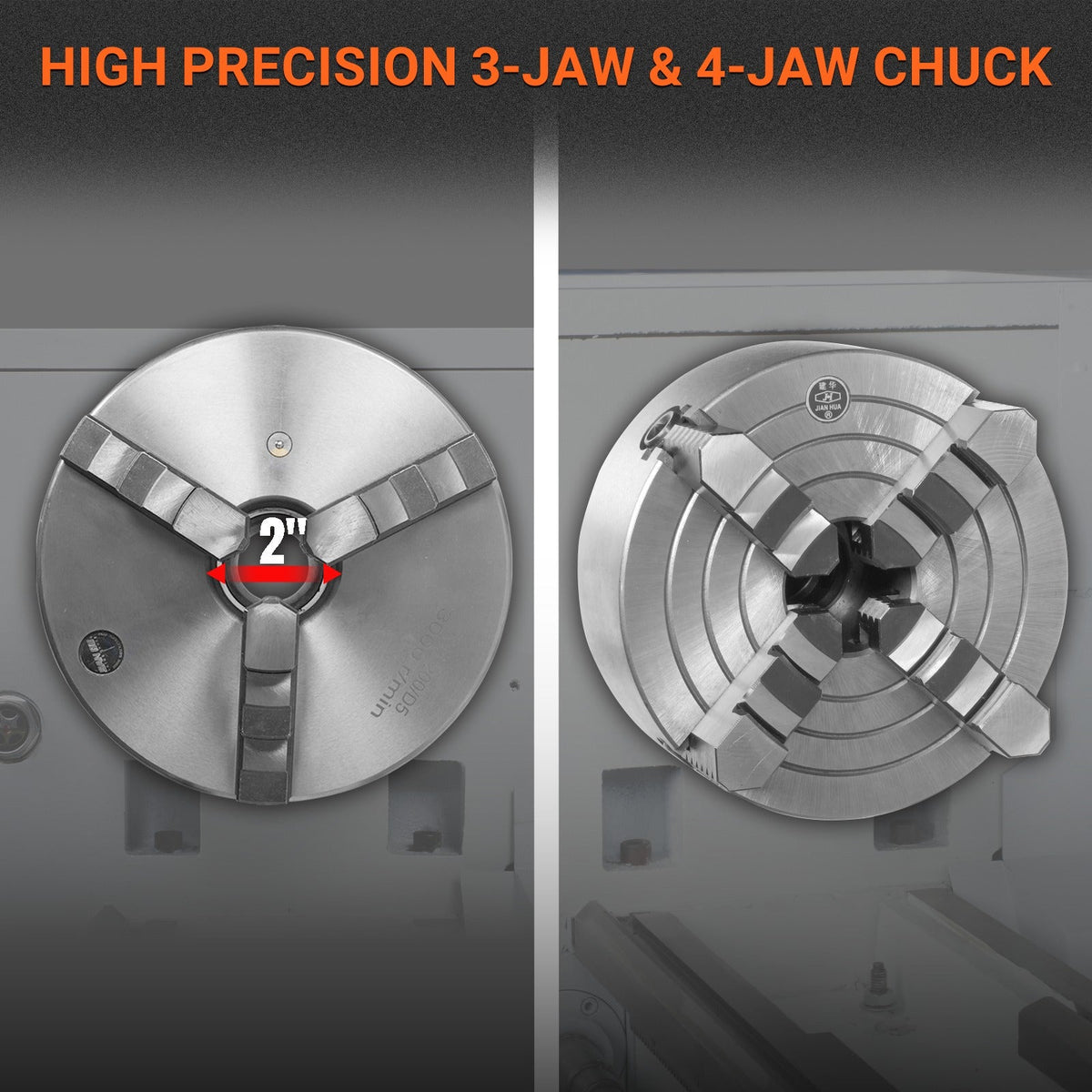

- Two chucksMechMaxx lists a 6 in. 3-jaw and an 8 in. 4-jaw chuck.
- 5/8 in. tool capacityTakes cutting tools up to 5/8 x 5/8 in. (16 x 16 mm).
Metal lathe specifications
| Specification | Details |
|---|---|
| Model / SKU | 1440G / 500009 |
| Motor | 2 HP (1,500 W), 220V, 60 Hz, single-phase |
| Swing over bed | 14 in. |
| Swing over cross slide | 220 mm (about 8-5/8 in.) |
| Swing over gap | 19-5/8 in. (500 mm) |
| Distance between centers | 39-3/8 in. (1,000 mm) |
| Bed width | 187 mm |
| Spindle speeds | 8 speeds |
| Tailstock taper | MT3 |
| Tailstock quill travel | 3-3/4 in. (95 mm) |
| Longitudinal feeds | 0.002-0.0548 in./rev |
| Leadscrew | 7/8 in. (22 mm), 8 TPI |
| Inch threads | 34 pitches, 4-56 TPI |
| Metric threads | 26 pitches |
| Module threads | 16 pitches, 0.35-5 M.P. |
| Diametral threads | 36 pitches, 6-104 D.P. |
| Chucks | 6 in. 3-jaw and 8 in. 4-jaw |
| Max tool size | 5/8 x 5/8 in. (16 x 16 mm) |
| Thread dial indicator | Yes |
| Coolant system | Yes |
| Shipping weight | 1,486 lb |
| Warranty | 1 year from MechMaxx |
Documents
Owner's manual
See it in action
MechMaxx 1440G questions
What power does the 1440G need?
220V, 60 Hz, single-phase for the 2 HP (1,500 W) motor. It will not run on a 110V household outlet, so have a 220V circuit ready before it arrives.
How long and how large a part can it turn?
Up to 39-3/8 in. (1,000 mm) between centers, 14 in. in diameter over the bed and 19-5/8 in. over the gap.
Can it cut metric threads?
Yes. The gearbox covers 34 inch pitches (4-56 TPI), 26 metric pitches, 16 module pitches and 36 diametral pitches.
How heavy is it to receive?
MechMaxx lists the shipping weight at about 1,486 lb, so it arrives by freight truck. Plan for a forklift or engine hoist to unload and set it.
What is the warranty?
MechMaxx covers the 1440G with a 1-year warranty and lifetime technical support by phone or email.
