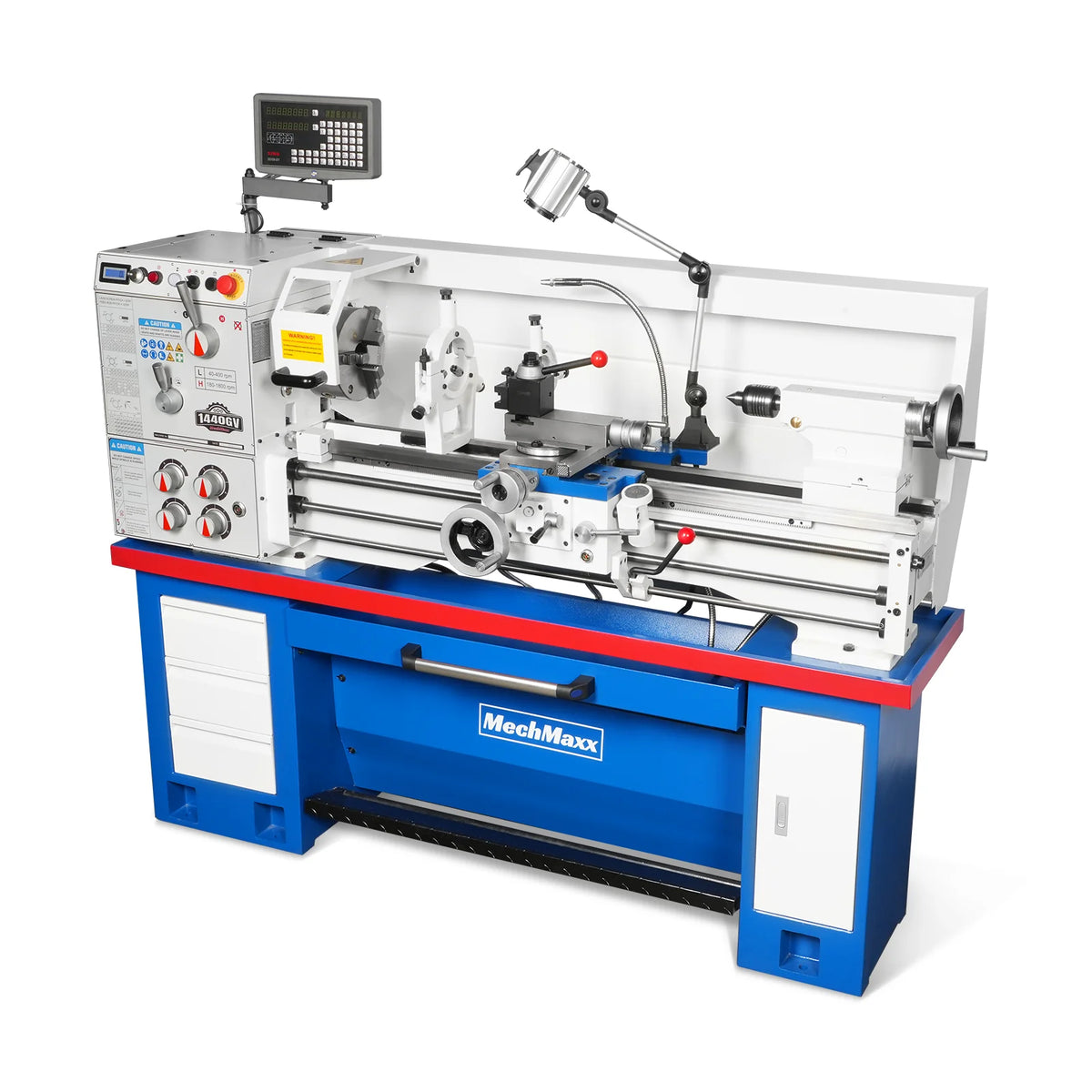

MechMaxx 1440GV 14" x 40" Variable Speed Metal Lathe
The MechMaxx 1440GV is a 14 in. x 40 in. metal lathe with a 3 HP motor on a variable frequency drive, running on 220V single-phase power. It swings 14 in. (356 mm) over the bed, 19-3/4 in. (502 mm) over the gap, and holds 40 in. (1,016 mm) between centers.
Spindle speed is infinitely variable from 40 to 1,800 RPM through a belt drive. The D1-5 camlock spindle has a 2 in. (51 mm) bore and an MT6 taper, so larger stock can pass through the headstock.
Infinitely Variable Speed
Speed is set with a knob instead of by changing belts or gears: 40-600 RPM for threading, boring and heavy cuts, 600-1,800 RPM for finishing and small diameters.
Inch and Metric Threading
Cuts inch threads from 4 to 56 TPI and metric threads from 0.4 to 7.0 mm pitch.
Key features and benefits
- 3 HP, 220V single-phaseAC motor with variable frequency drive, 60 Hz, 20 A. Must be wired to a grounded source by a qualified electrician.
- 40-1,800 RPM, infinitely variableDial in the right speed for the material and the cut.
- 2 in. spindle bore51 mm bore on a D1-5 camlock spindle with an MT6 taper.
- 19-3/4 in. swing over the gapRemove the gap section to turn larger-diameter discs and flanges.
- Power feedsLongitudinal feed 0.002-0.046 in./rev, cross feed 0.0007-0.0187 in./rev.
- MT4 tailstock1.26 in. (32 mm) quill with 4 in. (102 mm) of travel.
- Wedge-type quick change tool postMechMaxx lists it with 5 tool holders for fast tool changes.

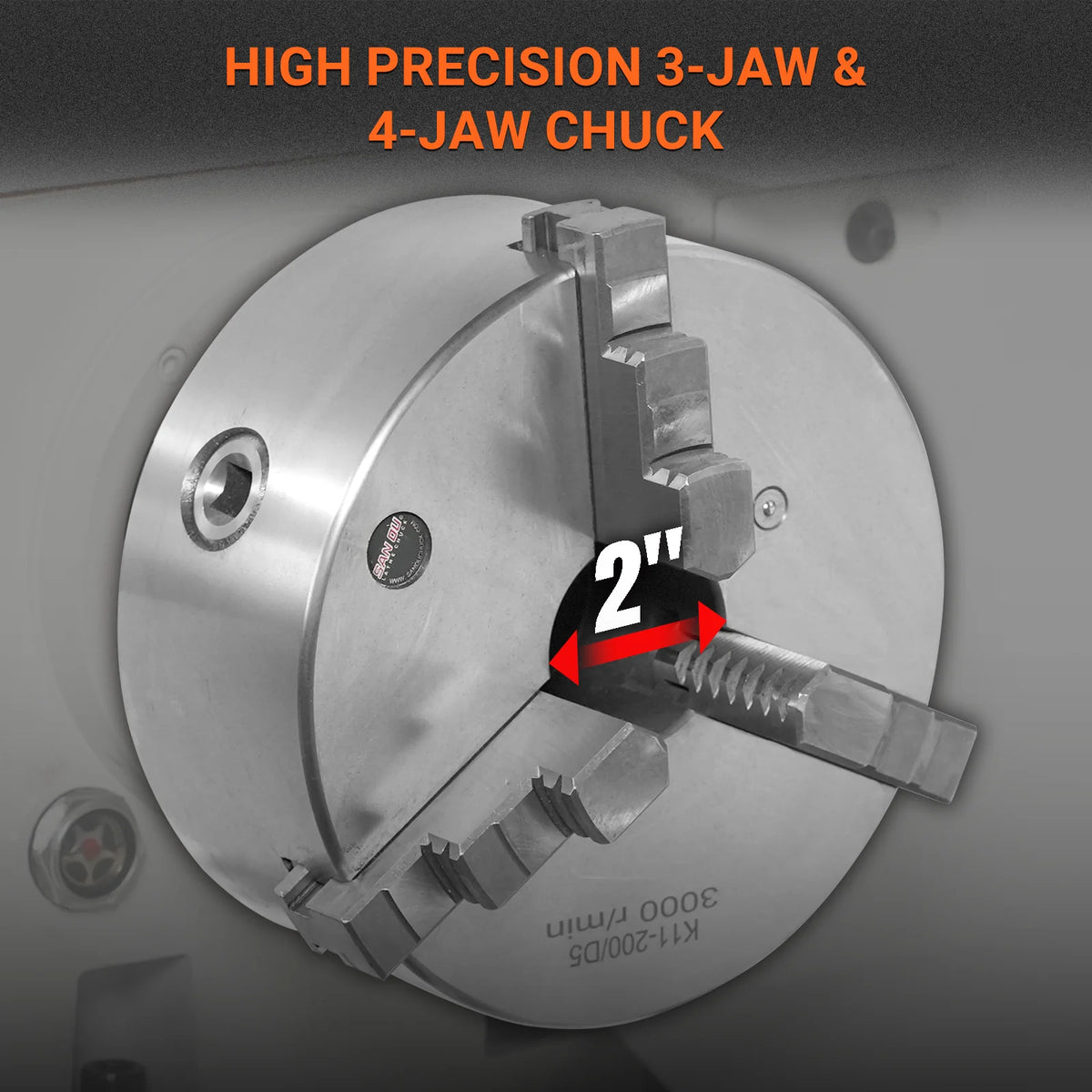

- Equipped to work8 in. (200 mm) 3-jaw chuck, steady and follow rests, thread dial, foot brake, splash guard, coolant system and work light.
Metal lathe specifications
| Specification | Details |
|---|---|
| Model / SKU | 1440GV / 500010 |
| Motor | 3 HP AC motor with variable frequency drive |
| Power | 220V, 60 Hz, single-phase, 20 A |
| Drive type | Belt drive |
| Swing over bed | 14 in. (356 mm) |
| Swing over cross slide | 8-13/16 in. (224 mm) |
| Swing over gap | 19-3/4 in. (502 mm) |
| Distance between centers | 40 in. (1,016 mm) |
| Bed width | 7.38 in. (187 mm) |
| Spindle bore | 2 in. (51 mm) |
| Spindle mount | D1-5 camlock |
| Spindle taper | MT6 |
| Spindle speeds | Infinitely variable, 40-1,800 RPM |
| Tailstock taper | MT4 |
| Tailstock quill diameter | 1.26 in. (32 mm) |
| Tailstock quill travel | 4 in. (102 mm) |
| Cross slide travel | 6-11/16 in. (170 mm) |
| Longitudinal feeds | 0.002-0.046 in./rev |
| Cross feeds | 0.0007-0.0187 in./rev |
| Inch threads | 4-56 TPI |
| Metric threads | 0.4-7.0 mm pitch |
| Machine footprint (W x D) | 72 x 24 in. (1,829 x 610 mm) |
| Overall dimensions (L x W x H) | 76 x 30 x 60 in. (1,930 x 762 x 1,524 mm) |
| Net weight | 1,800 lb (816 kg) |
| Shipping dimensions | 78 x 48 x 72 in. (1,981 x 1,219 x 1,829 mm) |
| Shipping weight | 1,900 lb (861 kg) |
| Warranty | 1 year from MechMaxx |
Documents
Owner's manual
See it in action
MechMaxx 1440GV questions
What power does the 1440GV need?
220V, 60 Hz, single-phase at 20 A. MechMaxx's manual says it must be connected to a grounded source and wired by a qualified electrician. It will not run on a 110V household outlet.
Does it have gears or belts to change speed?
Neither for speed changes. The spindle runs through a belt drive, and the variable frequency drive sets the speed anywhere from 40 to 1,800 RPM with a knob.
How big a part can it turn?
Up to 14 in. in diameter over the bed, 19-3/4 in. over the gap, and 40 in. (1,016 mm) between centers. Bar stock up to 2 in. passes through the spindle.
How heavy is it to receive?
MechMaxx lists a net weight of 1,800 lb and a shipping weight of 1,900 lb, so it arrives by freight truck. Plan for a forklift or engine hoist to unload and set it.
What is the warranty?
MechMaxx covers the 1440GV with a 1-year warranty and lifetime technical support by phone or email.
