MechMaxx CLM1620 Multi-Function Lathe Mill Drill
The MechMaxx CLM1620 is a compact bench-top lathe with a drilling and milling head built onto the same machine. A single 1 HP (750 W) motor on 110V, 60 Hz single-phase power drives both the lathe and the mill head.
The lathe swings 16.5 in. (420 mm) over the bed and holds 15.7 in. (400 mm) between centers. Its spindle runs 160-1,360 RPM in 7 speeds and has an MT3 taper with a 0.79 in. (20 mm) bore.
One Motor, Two Machines
The mill head runs off the lathe motor, so turning, drilling and milling share one drive.
Inch and Metric Threading
Change gears cut inch threads from 8 to 120 TPI and metric threads from 0.2 to 3 mm.
Key features and benefits
- 1 HP (750 W) motor110V, 60 Hz, single-phase. Drives both the lathe and the mill head.
- 7-speed lathe spindle160-1,360 RPM, belt-driven.

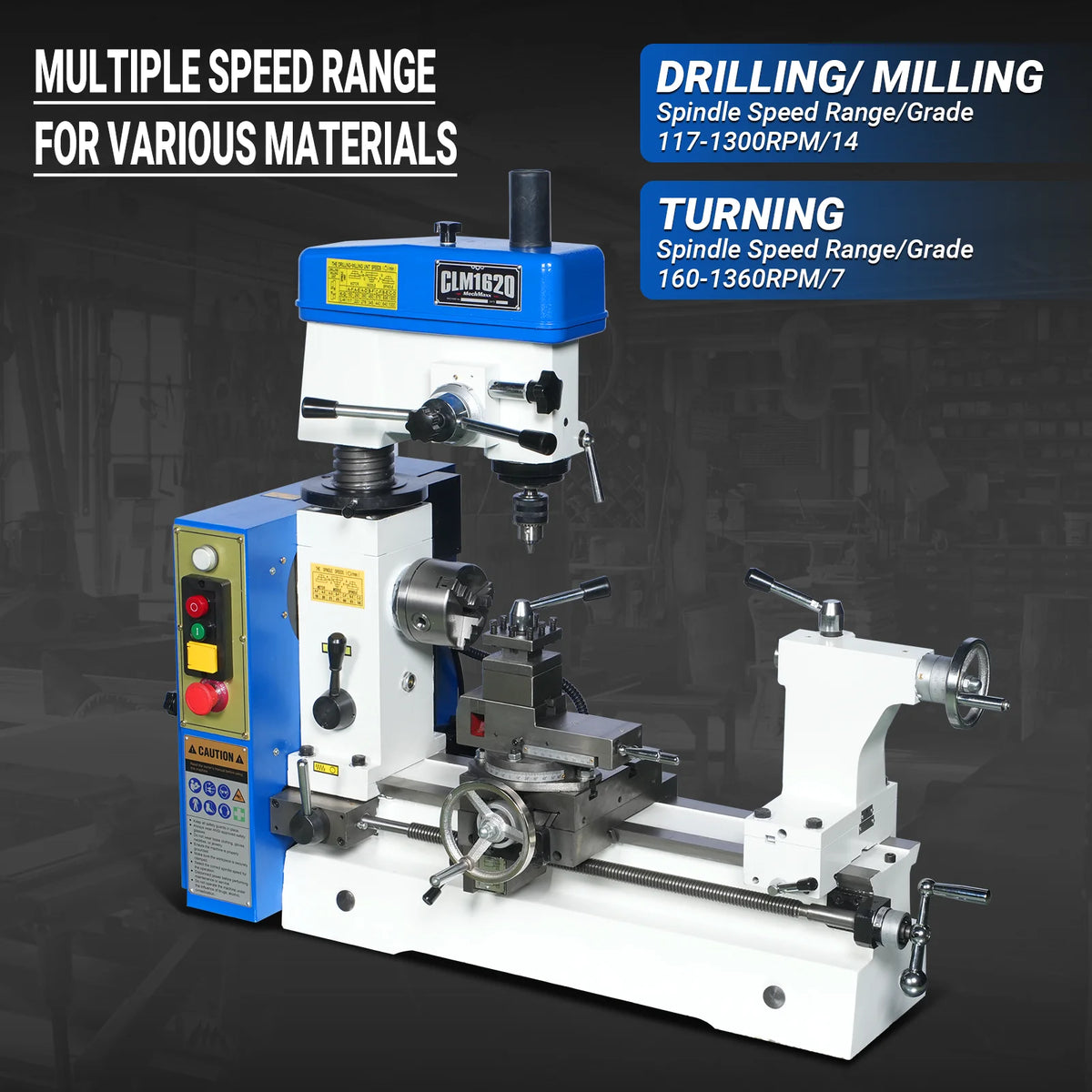

- MT3 mill spindle14 speeds on the drilling and milling head.
- Milling capacityDrills to 0.59 in. (15 mm), end mills to 0.79 in. (20 mm) and face mills to 2.48 in. (63 mm).
- Head travel3.15 in. (80 mm) of head travel and 3.35 in. (85 mm) of spindle travel.
- Automatic feedPower feed from 0.002 to 0.007 in. per revolution.
- MT3 tailstockSupports long work or drills with MT3 tooling.

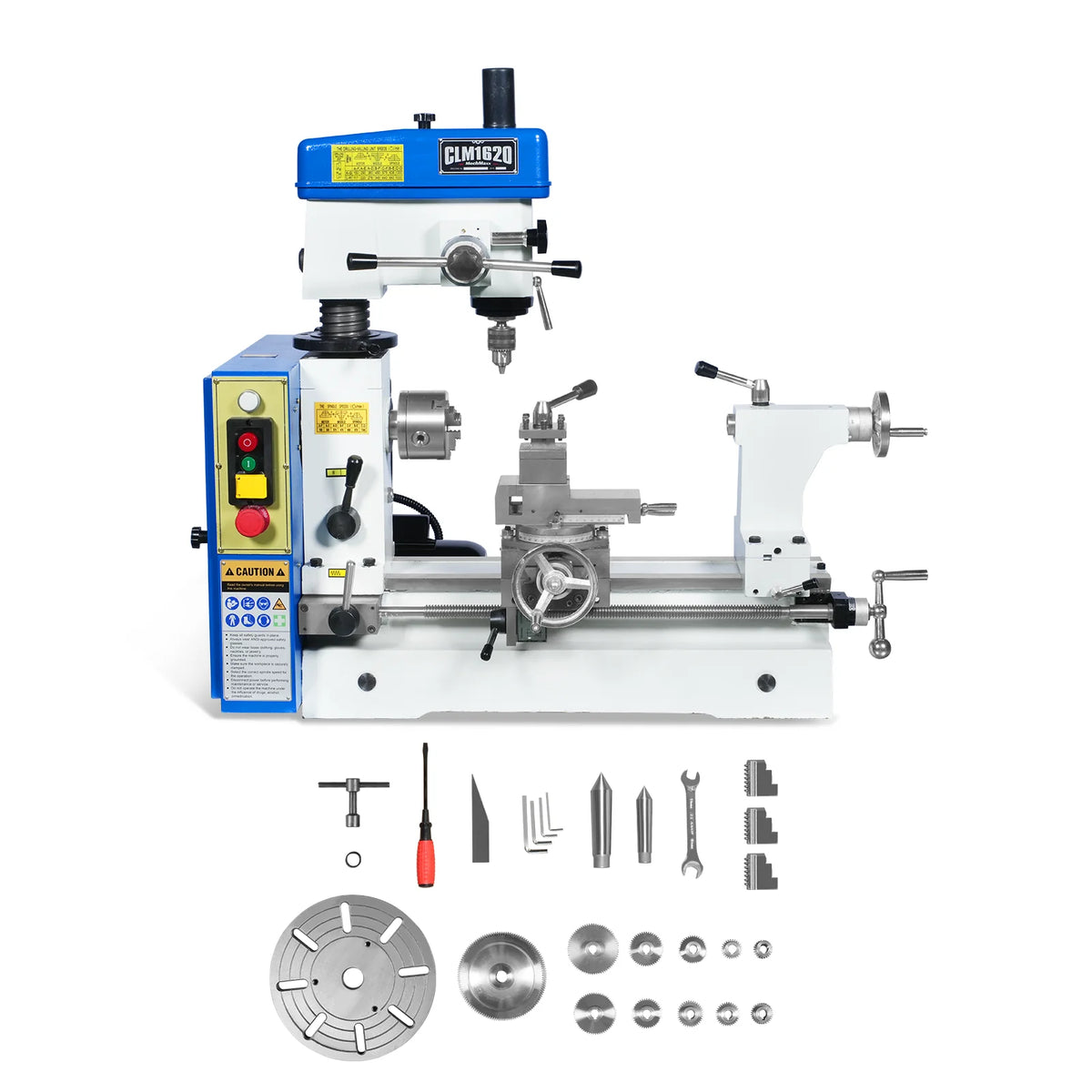

- Accessories includedChange gears, chuck jaws, parting tool, two dead centers, wrenches, Allen keys and a screwdriver.
Combination machine specifications
| Specification | Details |
|---|---|
| Model / SKU | CLM1620 / 500103 |
| Motor | 1 HP (750 W), shared by lathe and mill head |
| Power | 110V, 60 Hz, single-phase |
| Lathe: swing over bed | 16.5 in. (420 mm) |
| Lathe: distance between centers | 15.7 in. (400 mm) |
| Lathe: longitudinal travel | 14.96 in. (380 mm) |
| Lathe: cross travel | 4.72 in. (120 mm) |
| Lathe: spindle bore | 0.79 in. (20 mm) |
| Lathe: spindle taper | MT3 |
| Lathe: spindle speeds | 160-1,360 RPM, 7 speeds |
| Lathe: tailstock taper | MT3 |
| Lathe: inch threads | 8-120 TPI |
| Lathe: metric threads | 0.2-3 mm |
| Lathe: feed rate | 0.002-0.007 in./rev |
| Mill: spindle taper | MT3 |
| Mill: spindle speeds | 14 speeds |
| Mill: spindle travel | 3.35 in. (85 mm) |
| Mill: head travel | 3.15 in. (80 mm) |
| Mill: drilling capacity | 0.59 in. (15 mm) |
| Mill: end milling capacity | 0.79 in. (20 mm) |
| Mill: face milling capacity | 2.48 in. (63 mm) |
| Stand | Not included |
| Shipping weight | 463 lb (210 kg) |
| Warranty | 1 year from MechMaxx |
Documents
Owner's manual
See it in action
MechMaxx CLM1620 questions
What power does the CLM1620 need?
110V, 60 Hz, single-phase. MechMaxx lists a rated current of 8.5 A and recommends a 10 A fuse.
Does the mill head have its own motor?
No. The 1 HP (750 W) lathe motor also drives the drilling and milling head.
What tooling does it take?
MT3. The lathe spindle, the tailstock and the milling spindle all use an MT3 taper.
Does it come with a stand?
No. MechMaxx sells the CLM1620 without a stand, so plan a stable, level workbench for it.
What is the warranty?
MechMaxx covers the CLM1620 with a 1-year warranty and lifetime technical support by phone or email.
