MechMaxx  |  SKU: 500105

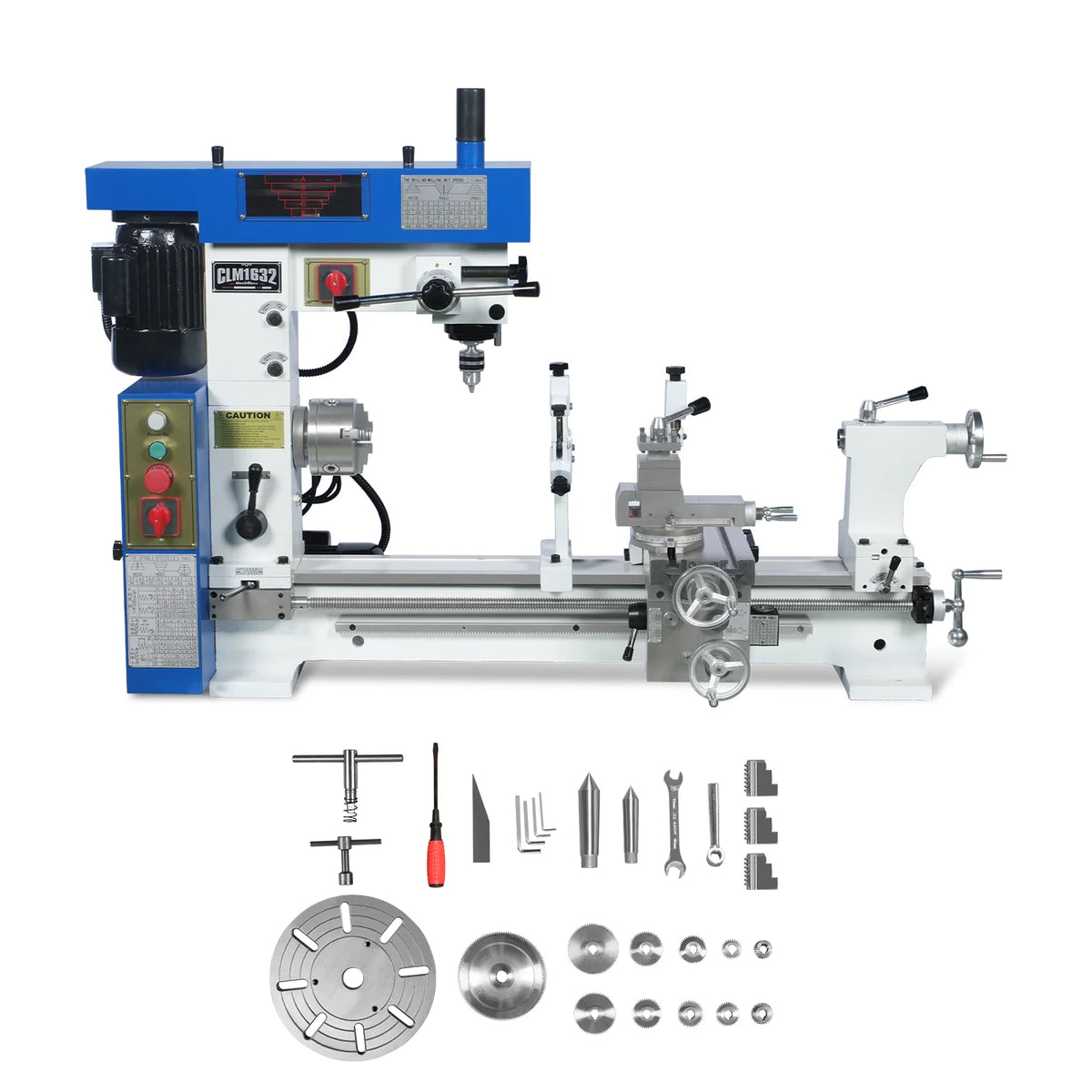

MechMaxx CLM1632 16" x 32" Multi-Function Metal Lathe with Milling Head — 1HP

$3,499.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $87.48 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
16.5in. swing
Lathe with Milling Head
Between centers31.5 in.
Mill speeds16 steps

MechMaxx CLM1632 16" x 32" Multi-Function Lathe Mill Drill

The MechMaxx CLM1632 is a bench-mounted combination lathe and mill for turning, milling, drilling and thread cutting. The lathe swings 16.5 in. (420 mm) over the bed and holds 31.5 in. (800 mm) between centers.

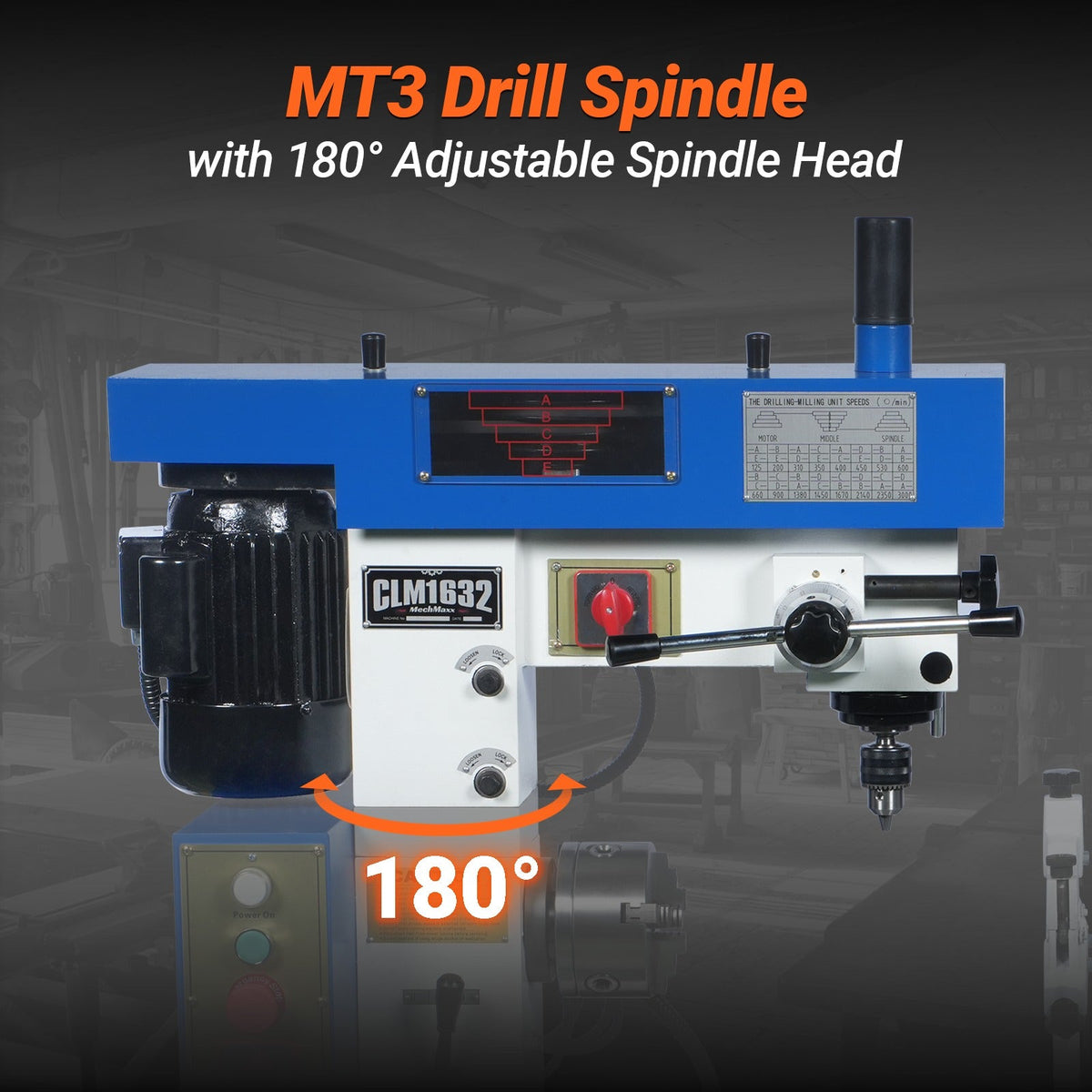

The lathe spindle runs 160-1,360 RPM through a 7-step pulley and has a 1.10 in. (28 mm) bore with an MT4 taper. The milling head above it has an MT3 spindle with 16 speeds from 120 to 3,000 RPM.

Wide Thread Range

Interchangeable gear sets cut inch threads from 4 to 120 TPI and metric threads from 0.2 to 6 mm.

Automatic Feed Both Ways

Longitudinal and cross feeds run by hand or under power, from 0.002 to 0.014 in. per revolution.

Key features and benefits

MechMaxx CLM1632 16 x 32 lathe with milling head
  • Lathe, mill and drillTurning, milling, drilling and thread cutting on one bench-mounted machine.
  • 7-step lathe spindle160-1,360 RPM through a step pulley.
  • 16-step mill spindle120-3,000 RPM on an MT3 milling spindle.
  • Milling capacityDrills to 0.87 in. (22 mm), end mills to 1.1 in. (28 mm), face mills to 3.15 in. (80 mm).
  • 4.33 in. quill travel110 mm of spindle travel on the milling head.
  • 29.1 in. carriage travel740 mm of longitudinal travel and 7.9 in. (200 mm) of cross travel.
  • MT3 tailstock2.75 in. (70 mm) of barrel travel.
  • Safety featuresEmergency stop button, limit switches and protective covers.

Combination machine specifications

Specification Details
Model / SKU CLM1632 / 500105
Power 110V, 60 Hz, single-phase
Lathe: swing over bed 16.5 in. (420 mm)
Lathe: distance between centers 31.5 in. (800 mm)
Lathe: longitudinal travel 29.1 in. (740 mm)
Lathe: cross travel 7.9 in. (200 mm)
Lathe: spindle bore 1.10 in. (28 mm)
Lathe: spindle taper MT4
Lathe: chuck 5 in. (125 mm)
Lathe: spindle speeds 160-1,360 RPM, 7 steps
Lathe: tailstock taper MT3
Lathe: tailstock travel 2.75 in. (70 mm)
Lathe: leadscrew pitch 6 TPI
Lathe: inch threads 4-120 TPI
Lathe: metric threads 0.2-6 mm
Lathe: feed rate 0.002-0.014 in./rev
Thread dial indicator Yes
Mill: spindle taper MT3
Mill: spindle speeds 120-3,000 RPM, 16 steps
Mill: spindle travel 4.33 in. (110 mm)
Mill: drilling capacity 0.87 in. (22 mm)
Mill: end milling capacity 1.1 in. (28 mm)
Mill: face milling capacity 3.15 in. (80 mm)
Stand Not included
Shipping weight 653 lb (296 kg)
Warranty 1 year from MechMaxx

Documents

Owner's manual

MechMaxx CLM1632 drill and mill machine owner's manualEnglish · Key pages below
Download
MechMaxx CLM1632 drill and mill machine owner's manual, Cover (page 1)
MechMaxx CLM1632 drill and mill machine owner's manual, Specifications (page 4)
MechMaxx CLM1632 drill and mill machine owner's manual, Controls (page 11)
MechMaxx CLM1632 drill and mill machine owner's manual, Operation (page 12)
MechMaxx CLM1632 drill and mill machine owner's manual, Maintenance (page 15)
MechMaxx CLM1632 drill and mill machine owner's manual, Parts (page 18)

See it in action

MechMaxx CLM1632 questions

What can the CLM1632 do?

Turn, face and thread on the lathe, and drill and mill with the head mounted above it. MechMaxx lists drilling up to 0.87 in. (22 mm), end milling up to 1.1 in. (28 mm) and face milling up to 3.15 in. (80 mm).

What power does the CLM1632 need?

MechMaxx lists this model for 110V, 60 Hz single-phase power, so it runs from a standard 110V supply rather than a 220V circuit.

What tooling does the mill head take?

MT3. The milling spindle is an MT3 taper, and the lathe tailstock is MT3 as well.

Does it come with a stand?

No. MechMaxx sells the CLM1632 without a stand, so plan a sturdy bench for it.

What is the warranty?

MechMaxx covers the CLM1632 with a 1-year warranty and lifetime technical support by phone or email.
