MechMaxx PB10012 100" Manual Sheet Metal Brake - 12 Gauge, Adjustable Fingers

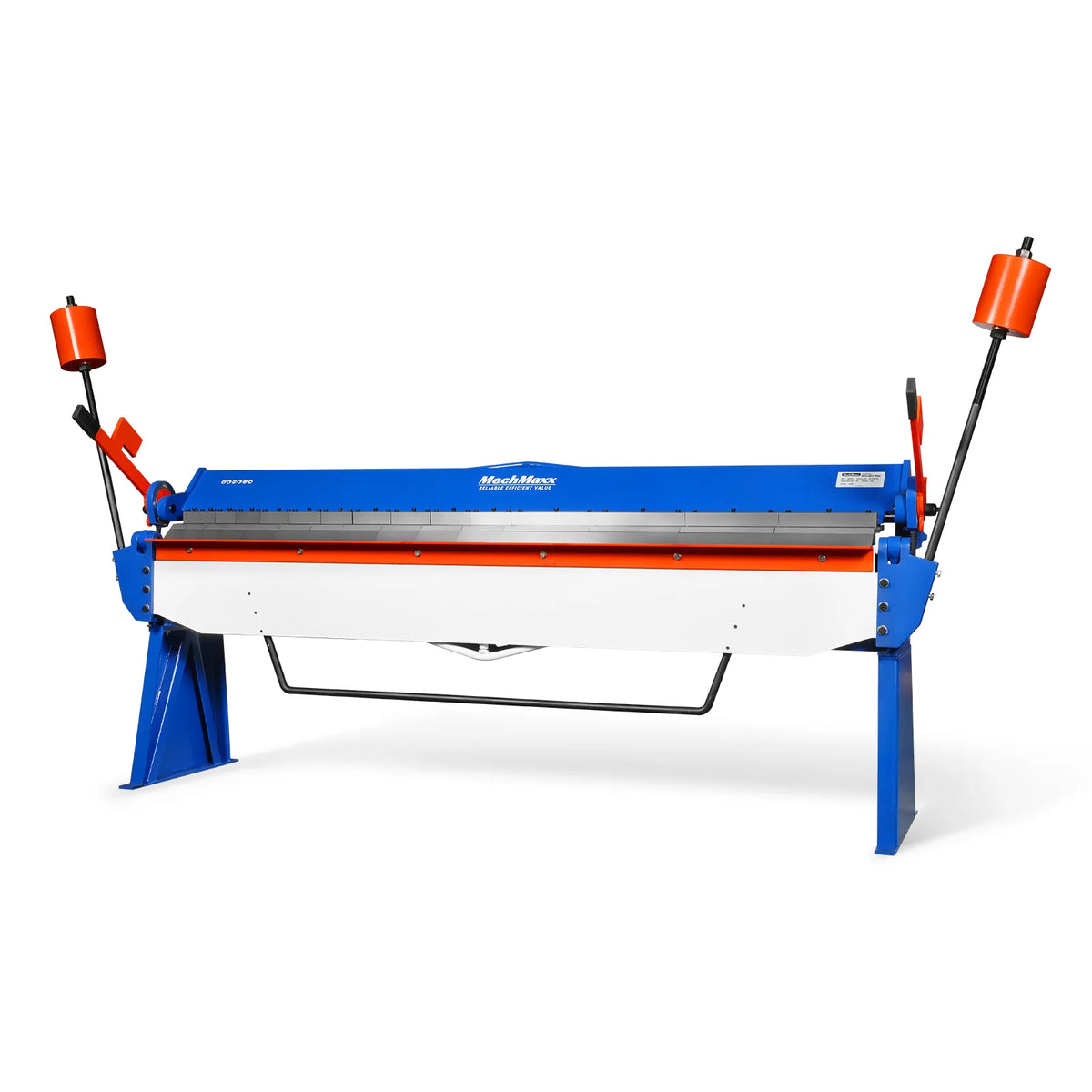

The MechMaxx PB10012 is a floor-standing manual pan and box brake with a 100 in. bending length. It bends mild steel up to 12 gauge (2.5 mm) across the full width, from 0 to 135°.
Removable finger dies let you form boxes, pans and channels as well as straight bends. Clamping is set by hand with dual handwheels, and dual counterweights help lift the bending leaf.
Removable Finger Dies
Pull out individual finger dies to clear the flanges already bent on a box or pan, then refit them for the next part.
Counterweighted Bending Leaf
Dual counterweights balance the bending leaf, so long, heavy-gauge bends take less effort at the operating handles.
Key features and benefits
- 100 in. bending lengthFull rated capacity across the whole 100 in. bed.
- 12 gauge mild steelFull-width capacity rated on mild steel (2.5 mm).
- 0-135° bend angleBends past 90° for hems, returns and closed shapes.
- Removable finger diesSet up for boxes, pans and channels, not just straight bends.
- 4 in. shut heightWith up to 1 in. (25 mm) of beam lift.
- Manual clampingDual handwheels set the clamp; the beam is adjusted by hand.
- Dual counterweightsBalance the bending leaf for easier lifting.
- Box beam with reinforced ribsWelded high-strength steel frame, bolted to the floor.

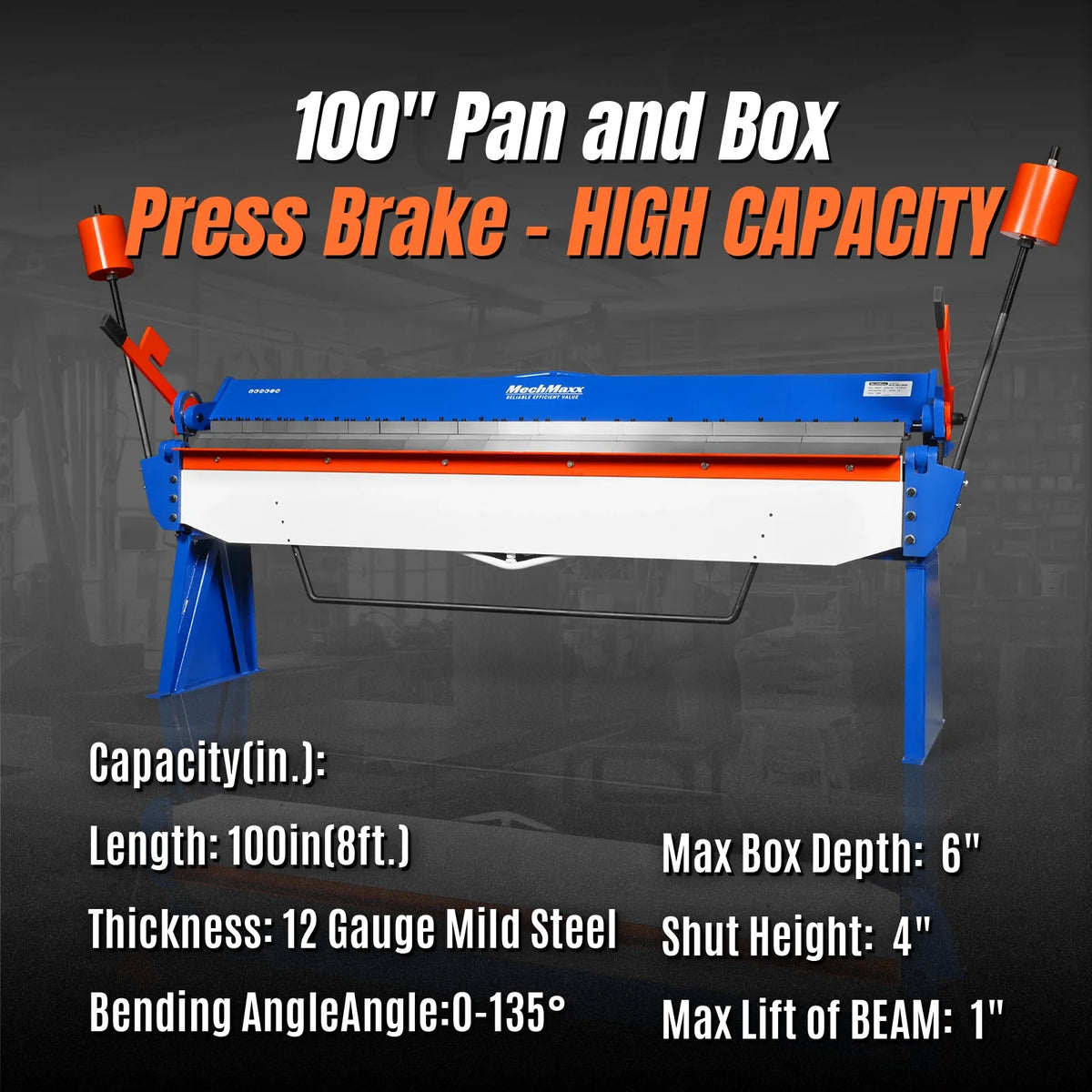

Sheet metal brake specifications
| Specification | Details |
|---|---|
| Model / SKU | PB10012 / 500304 |
| Type | Manual pan and box brake |
| Power | None - manually operated |
| Max bending length | 100 in. |
| Max thickness (mild steel) | 12 gauge |
| Bending angle | 0-135° |
| Shut height | 4 in. (102 mm) |
| Max beam lift | 1 in. (25 mm) |
| Clamping | Manual, dual handwheels |
| Counterweights | Dual |
| Finger dies | Removable |
| Frame | Welded high-strength steel, box beam with reinforced ribs |
| Overall size (L x W x H) | 118 x 30 x 43 in. |
| Packing size | 110 x 32 x 45 in. (2,800 x 820 x 1,143 mm) |
| Shipping weight | 2,700 lb (approx.) |
| Warranty | 1 year from MechMaxx |
Documents
Owner's manual
MechMaxx PB10012 questions
Does the PB10012 need power?
No. The PB10012 is a manual brake: you clamp with the handwheels and bend with the operating handles. There is nothing to wire up.
How thick a sheet can it bend?
Up to 12 gauge mild steel across the full 100 in. width. MechMaxx rates that capacity on hot-rolled mild steel with a tensile strength up to 250 MPa.
How is it installed?
MechMaxx says to lift it off the pallet with a forklift or overhead hoist, anchor it to a level concrete floor with anchor bolts, and leave 36 in. (915 mm) of clearance on all sides.
What maintenance does it need?
The manual calls for light oil on the pivot points and handle bearings once a month.
What is the warranty?
MechMaxx covers the PB10012 with a 1-year warranty on the machine and lifetime technical support by phone or email.
