MechMaxx  |  SKU: 150167H6

MechMaxx SM-32 32" Portable Sawmill — Honda GX390 E-Start, 20 ft Track, 5 Blades

$3,799.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $94.98 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
32in. max log diameter
Portable Band Sawmill
EngineHONDA GX390 389cc
Track20 ft

MechMaxx SM-32 32" Portable Sawmill - HONDA GX390 389cc E-Start, 20 ft Track, 5 Blades

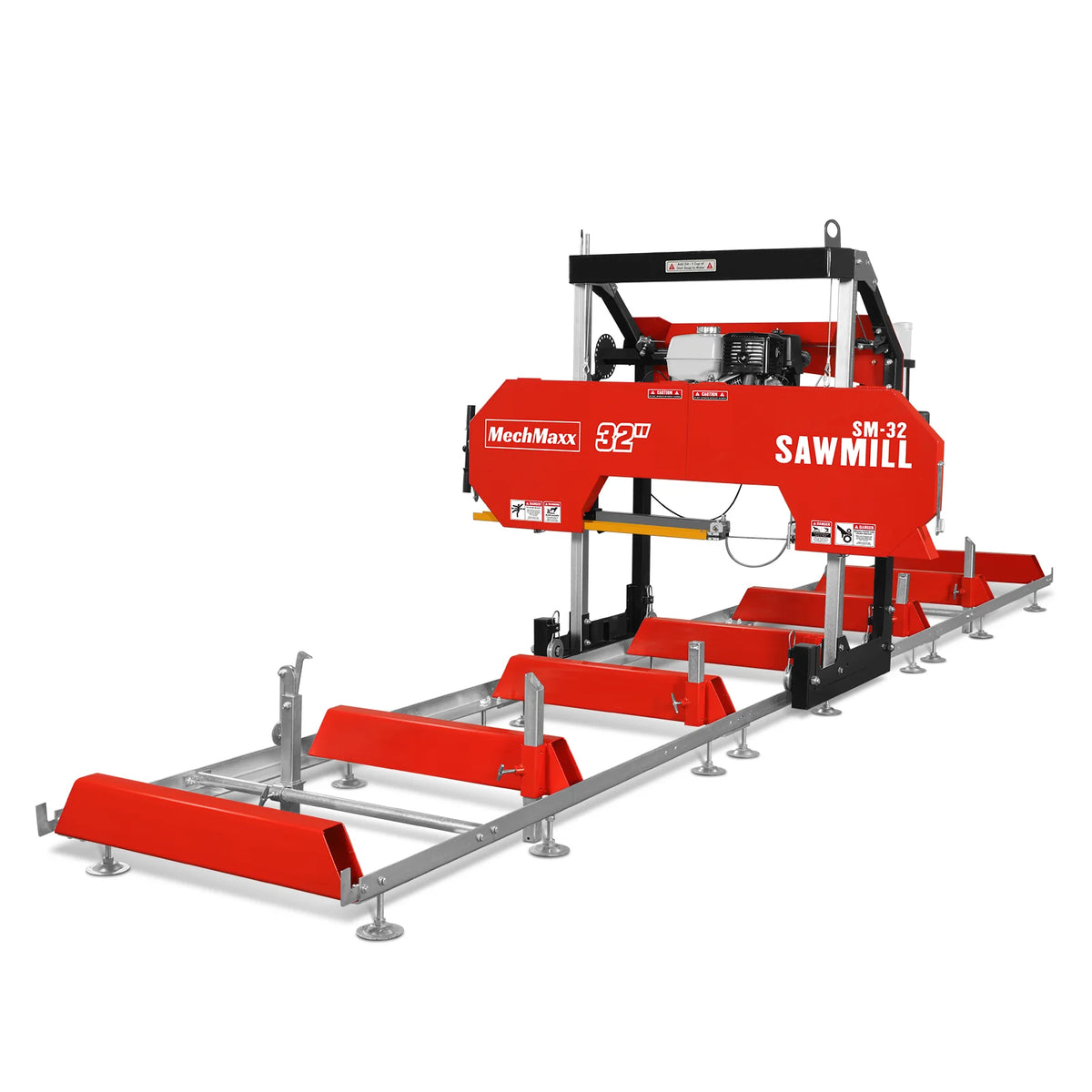

The MechMaxx SM-32 is a portable band sawmill powered by a HONDA GX390 389cc 11.7 HP electric-start gas engine. It takes logs up to 32 in. in diameter and cuts boards up to 7 in. thick on a 20 ft track.

Power reaches the 19 in. cast iron bandwheels through a centrifugal clutch and belt. The 4-post head is set with a 23-position height handle, and the throttle and emergency stop sit on the push handle.

23-Position Height Handle

The cutting-height handle locks into 23 positions, so you can set a board thickness and repeat it cut after cut.

Throttle on the Push Handle

The throttle sits on the push handle, so you control cutting speed as you walk the head down the track. An emergency stop button is on the handle.

Key features and benefits

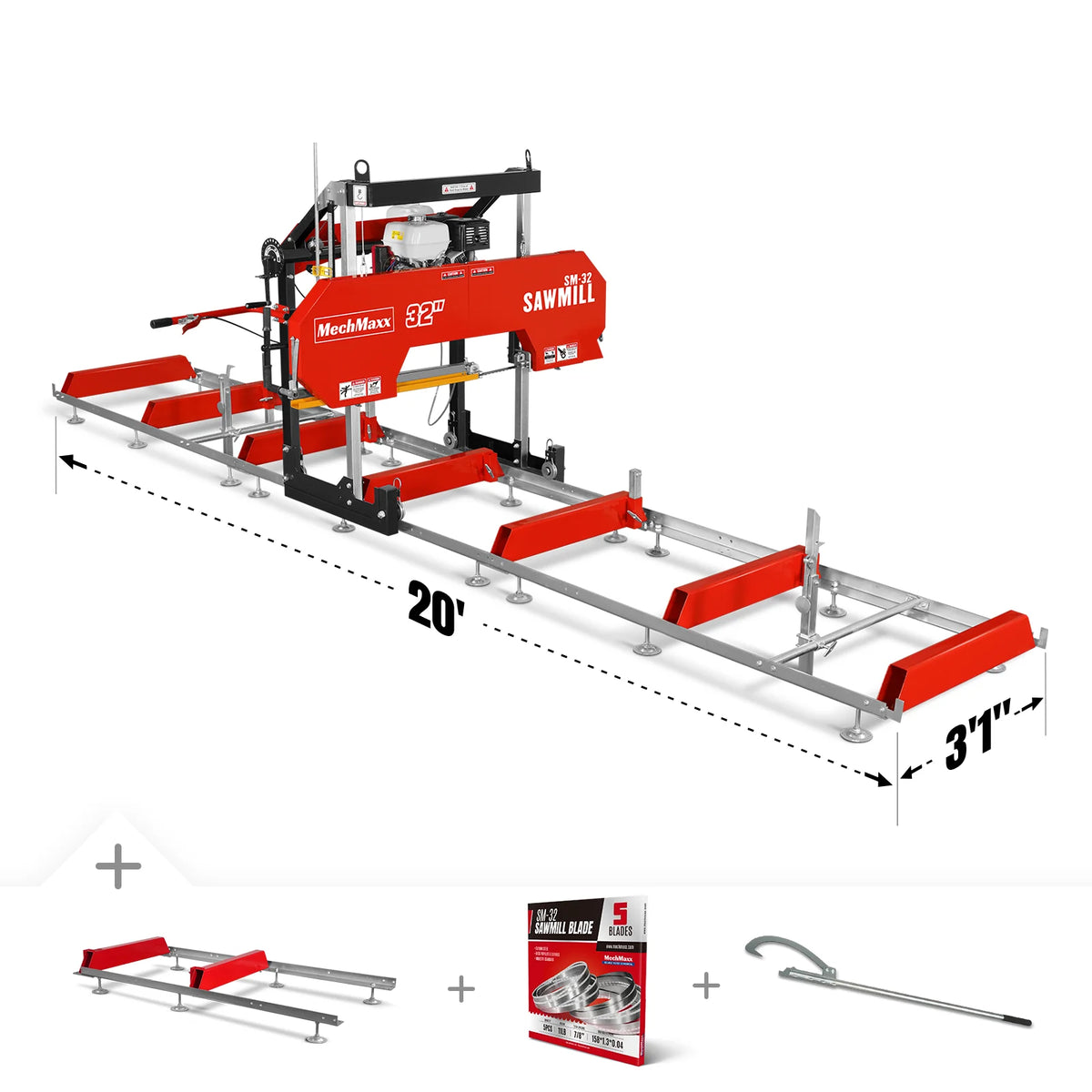

MechMaxx SM-32 32 inch portable band sawmill with HONDA GX390 engine and 20 ft track
  • 32 in. max log diameterTakes large-diameter logs for wide boards and slabs.
  • HONDA GX390 389ccSingle-cylinder, 4-stroke, air-cooled OHV, electric start.
  • 20 ft track13 ft track plus a 6.4 ft extension, included; rated to carry 5 tons.
  • 7 in. max board thicknessSet with the 23-position height handle.
  • 5 blades includedBlade count per MechMaxx listing.
  • Electric start12V 20Ah lead-acid battery.
  • Water blade lubrication2.6 gal tank with a manual valve.
  • 4-post head, 19 in. bandwheelsCast iron bandwheels, belt drive and centrifugal clutch.

Portable sawmill specifications

Specification Details
Model / SKU SM-32 / 150167H6
Type Portable band sawmill
Engine HONDA GX390, 389cc, 11.7 HP
Engine type Single cylinder, 4-stroke, air-cooled, OHV
Start Electric start
Fuel tank 6.1 L (1.61 US gal) per the HONDA GX390 engine manual
Battery 12V 20Ah lead-acid (for electric start)
Max log diameter 32 in.
Max board thickness 7 in.
Track length 20 ft
Track extension Included (13 ft track + 6.4 ft extension)
Standard cutting length 16 ft 4 in.
Track width 3 ft 1 in.
Track load-bearing 5 tons
Blade pitch 7/8 in.
Blades included 5
Package contents Sawmill, 5 blades, cant hook
Bandwheels Cast iron, 19 in. diameter
Blade tension Adjustable lever
Blade engagement Centrifugal clutch, belt drive
Blade lubrication Water lube, manual valve, 2.6 gal tank
Head design 4-post
Leveling feet 18
Log rests 2 long, 2 short
Log clamps 2 quick-lock
Track bunks 3 x 6 in.
Finish Powder coat paint, galvanized steel
Packing size 90 x 25 x 34 in.
Shipping weight 1,047 lb (net 953 lb)
Warranty 2 years sawmill, 2 years engine (MechMaxx)

Documents

Owner's manual

MechMaxx SM-32 portable sawmill operator's manualEnglish · Key pages below
Download
MechMaxx SM-32 portable sawmill operator's manual, Cover (page 1)
MechMaxx SM-32 portable sawmill operator's manual, Specifications (page 4)
MechMaxx SM-32 portable sawmill operator's manual, Assembly (page 9)
MechMaxx SM-32 portable sawmill operator's manual, Setup (page 29)
MechMaxx SM-32 portable sawmill operator's manual, Maintenance (page 35)
MechMaxx SM-32 portable sawmill operator's manual, Parts (page 40)

See it in action

MechMaxx SM-32 questions

What engine does the SM-32 HONDA use?

A HONDA GX390 389cc 11.7 HP single-cylinder, 4-stroke, air-cooled OHV gas engine with electric start. The HONDA manual lists a 6.1 L (1.61 US gal) fuel tank.

How big a log can the SM-32 cut?

MechMaxx rates it for logs up to 32 in. in diameter and boards up to 7 in. thick.

How long a log can it handle?

The 20 ft track (13 ft plus the included 6.4 ft extension) gives a standard cutting length of 16 ft 4 in.

How is the blade lubricated?

Through a manual valve from a 2.6 gal water tank. MechMaxx says to fill it with clean water and a little dish soap, or windshield washer fluid in winter months.

What is the warranty?

MechMaxx covers the SM-32 HONDA sawmill with a 2-year warranty on the machine and a 2-year warranty on the HONDA engine.
