MechMaxx  |  SKU: 150168MAX

MechMaxx SM-36MAX 36" Portable Sawmill — ZONSEN 750cc 25HP V-Twin, 20 ft Track, 10 Blades

$3,899.00
Shipping calculated at checkout.
Authorized MechMaxx Dealer
Ships with the full manufacturer warranty

Pay by card — protected checkout

Card and Shop Pay orders are covered by your card’s fraud protection.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

SSL secured checkout — your payment details are encrypted and are never stored on our servers.

Save $97.48 on this order when you pay by wire transfer Get 2.5% off →

Free delivery on this machine

Delivery is included in the price, so there’s no freight charge at checkout. Questions? Call (888) 990-8016.

We’re Here When You Need Us

FullForce Equipment support Instant Live Chat Available now (888) 990-8016 Call and talk to a real equipment specialist — no call center info@fullforceequipment.com Send specs or a parts list — we reply within 1 business day
36in. max log diameter
Portable Band Sawmill
EngineZONSEN 750cc 25 HP V-twin
Track20 ft

MechMaxx SM-36MAX 36" Portable Sawmill - ZONSEN 750cc 25HP V-Twin, 20 ft Track, 10 Blades

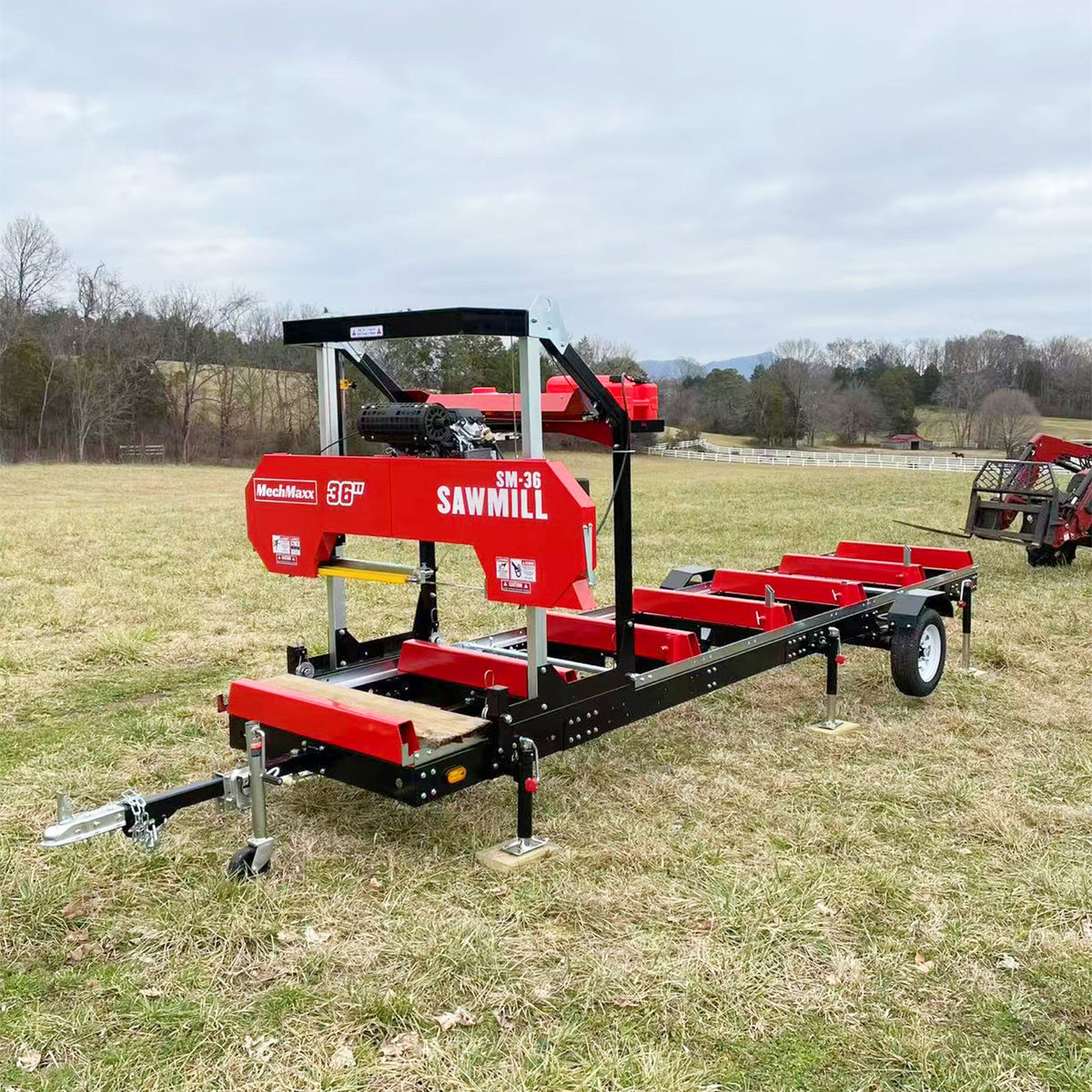

The MechMaxx SM-36MAX is a portable band sawmill powered by a ZONSEN GB750 750cc 25 HP V-twin electric-start gas engine. It takes logs up to 36 in. in diameter, cuts boards up to 36 in. wide and 7 in. thick, and runs on a 20 ft track.

Power reaches the 19 in. cast iron bandwheels through a centrifugal clutch and belt. The 4-post head is set with a 23-position height handle, and the throttle and emergency stop sit on the push handle.

23-Position Height Handle

The cutting-height handle locks into 23 positions, so you can set a board thickness and repeat it cut after cut.

Throttle on the Push Handle

The throttle sits on the push handle, so you control cutting speed as you walk the head down the track. An emergency stop button is on the handle.

Key features and benefits

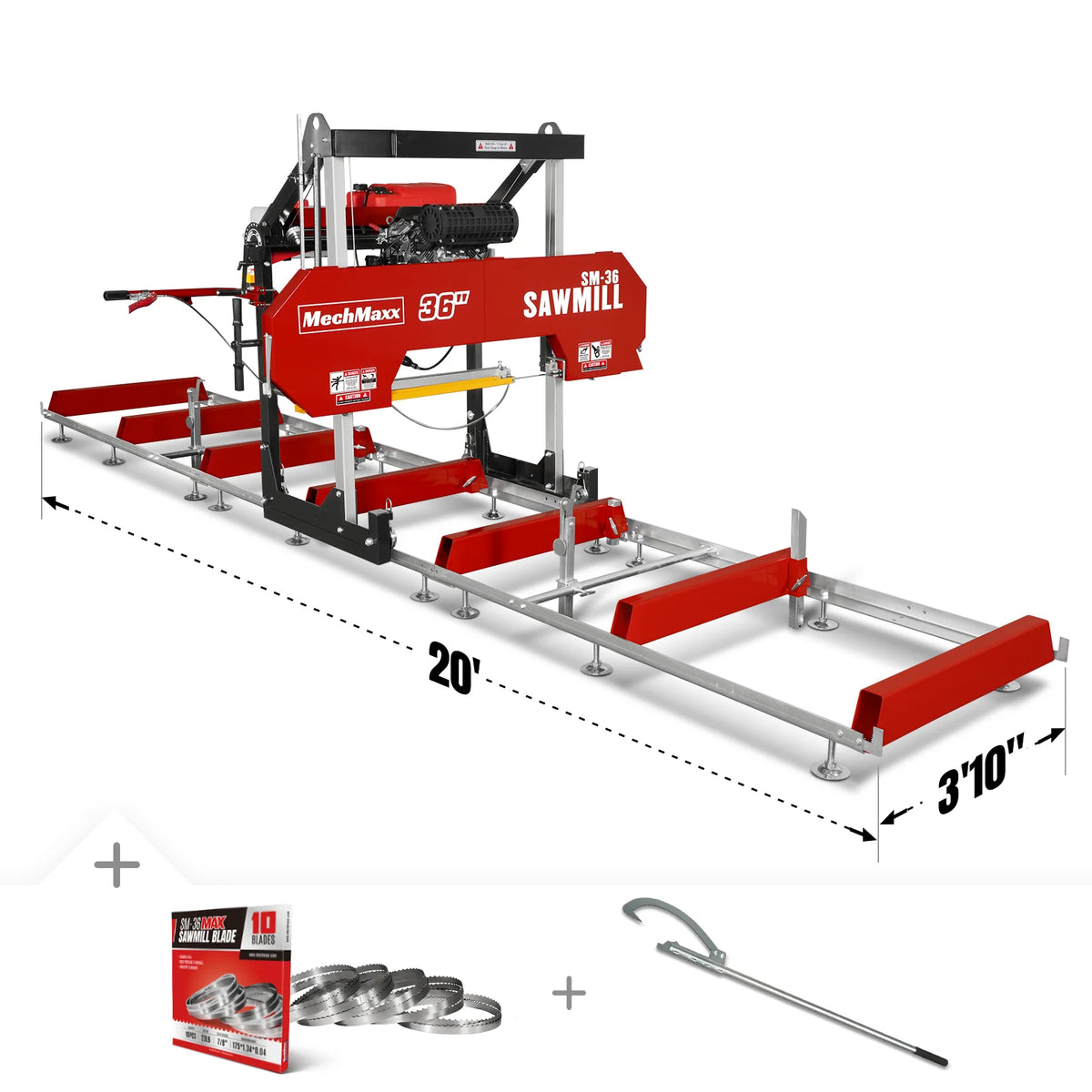

MechMaxx SM-36MAX 36 inch portable band sawmill with ZONSEN 750cc V-twin engine
  • 36 in. max log diameterWith up to 36 in. of live edge board width.
  • ZONSEN 750cc 25 HP V-twin90° V-twin, 4-stroke, forced air cooling, electric start.
  • 20 ft track16 ft 2 in. standard cutting length; rated to carry 5 tons.
  • 10 blades included175 x 1.3 in. bands, 7/8 in. pitch.
  • 7 in. max board thicknessSet with the 23-position height handle.
  • 6.3 gal fuel tankPlus a 4 gal water tank for blade lubrication.
  • 4-post head, 19 in. bandwheelsCast iron bandwheels, belt drive and centrifugal clutch.
  • Quick-lock log clamps2 clamps, 2 long and 2 short log rests, 18 leveling feet.

Portable sawmill specifications

Specification Details
Model / SKU SM-36MAX / 150168MAX
Type Portable band sawmill
Engine ZONSEN GB750, 750cc, 25 HP
Engine type Two-cylinder 90° V-twin, 4-stroke, forced air cooling
Start Electric start
Fuel tank 6.3 gal
Battery Included (lead-acid, per manual parts list)
Max log diameter 36 in.
Max board width (live edge) 36 in.
Max board thickness 7 in.
Track length 20 ft
Standard cutting length 16 ft 2 in.
Track width 3 ft 10 in.
Track load-bearing 5 tons
Blade size 175 x 1.3 in.
Blade pitch 7/8 in.
Blades included 10
Bandwheels Cast iron, 19 in. diameter
Blade tension Adjustable lever
Blade engagement Centrifugal clutch, belt drive
Blade lubrication Water lube, manual valve, 4 gal tank
Head design 4-post
Leveling feet 18
Log rests 2 long, 2 short
Log clamps 2 quick-lock
Track bunks 3 x 6 in.
Finish Powder coat paint, galvanized steel
Packing size 90 x 28.5 x 34 in.
Shipping weight 1,239 lb (net 1,115 lb)
Warranty 2 years sawmill, 2 years engine (MechMaxx)

Documents

Owner's manual

MechMaxx SM-36 portable sawmill operator's manualEnglish · Key pages below
Download
MechMaxx SM-36 portable sawmill operator's manual, Cover (page 1)
MechMaxx SM-36 portable sawmill operator's manual, Specifications (page 4)
MechMaxx SM-36 portable sawmill operator's manual, Assembly (page 11)
MechMaxx SM-36 portable sawmill operator's manual, Adjustment (page 32)
MechMaxx SM-36 portable sawmill operator's manual, Maintenance (page 37)
MechMaxx SM-36 portable sawmill operator's manual, Parts (page 42)

See it in action

MechMaxx SM-36MAX questions

What engine does the SM-36MAX use?

A ZONSEN GB750 750cc 25 HP two-cylinder, 90° V-type, 4-stroke gas engine with forced air cooling and electric start. MechMaxx lists a 6.3 gal fuel tank.

How big a log can the SM-36MAX cut?

MechMaxx rates it for logs up to 36 in. in diameter and boards up to 7 in. thick.

How long a log can it handle?

The 20 ft track gives a standard cutting length of 16 ft 2 in.

How is the blade lubricated?

Through a manual valve from a 4 gal water tank. MechMaxx says to fill it with clean water and a little dish soap, or windshield washer fluid in winter months.

What is the warranty?

MechMaxx covers the SM-36MAX sawmill with a 2-year warranty on the machine and a 2-year warranty on the ZONSEN engine.
