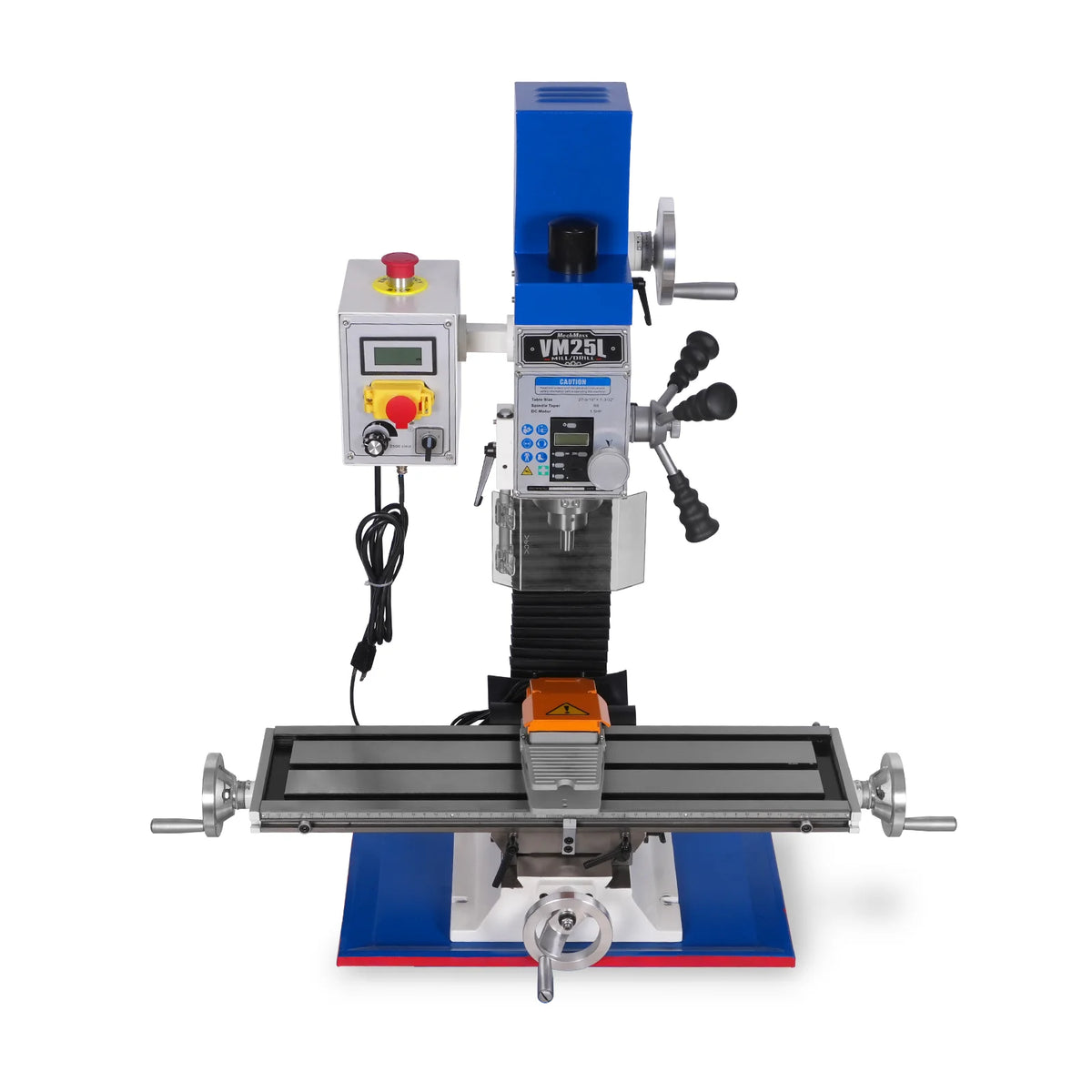

MechMaxx VM25L 7" x 27-1/2" Benchtop Mill Drill
The MechMaxx VM25L is a benchtop mill drill with a 1.5 HP brushless DC motor that plugs into 110V, 60 Hz single-phase power. Its R8 spindle runs at variable speed from 0 to 2,500 RPM.
The table measures 7 x 27-1/2 in. (180 x 700 mm) with three 12 mm T-slots. The head rides a square column with a dovetail slide.
Digital Depth Readout
A readout on the front column shows spindle depth in real time, in inches or millimeters, and zeroes at any tool height.
Standard R8 Tooling
The R8 spindle takes common collets and drill chucks, held with a 7/16 in. drawbar.
Key features and benefits
- 1.5 HP brushless DC motorRuns on 110V, 60 Hz single-phase power, 10 A rated current.
- 0-2,500 RPM variableTurn the speed knob to suit the cutter and material.
- R8 spindle2 in. (50 mm) of spindle travel with a 7/16 in. drawbar.
- Digital depth readoutReal-time Z-axis spindle depth with zero and mm/inch buttons.
- 7 x 27-1/2 in. tableThree 12 mm T-slots.
- Cutting capacityEnd mills to 5/8 in. (16 mm) and face mills to 2-1/2 in. (63 mm).
- Square columnDovetail slide for rigid head movement.
- Forward and reverseA spindle direction switch selects forward or reverse rotation.
Mill drill specifications
| Specification | Details |
|---|---|
| Model / SKU | VM25L / 500202 |
| Motor | 1.5 HP brushless DC |
| Power | 110V, 60 Hz, single-phase, 10 A |
| Drive | Belt |
| Spindle taper | R8 |
| Spindle speeds | Variable, 0-2,500 RPM |
| Spindle travel | 2 in. (50 mm) |
| Drawbar thread | 7/16 in. |
| Spindle to column | 7-1/2 in. (190 mm) |
| Drilling capacity | 1 in. (25 mm) |
| End milling capacity | 5/8 in. (16 mm) |
| Face milling capacity | 2-1/2 in. (63 mm) |
| Table size | 7 x 27-1/2 in. (180 x 700 mm) |
| T-slots | 3 x 12 mm |
| Column | Square column, dovetail slide |
| Depth readout | Digital, Z-axis |
| Stand | Not included |
| Shipping weight | 286 lb (130 kg) |
| Warranty | 1 year from MechMaxx |
Documents
Owner's manual
See it in action
MechMaxx VM25L questions
What power does the VM25L need?
110V, 60 Hz, single-phase. The MechMaxx manual says it must be connected to a grounded 110V outlet, and lists a rated current of 10 A.
What tooling does it take?
R8. Collets, drill chucks and other R8 tooling are secured with a 7/16 in. drawbar.
How big a table does it have?
7 x 27-1/2 in. (180 x 700 mm) with three 12 mm T-slots on 35 mm centers.
Does it come with a stand?
No. MechMaxx sells the VM25L without a stand; it is built to sit on a sturdy bench.
What is the warranty?
MechMaxx covers the VM25L with a 1-year warranty and lifetime technical support by phone or email.
